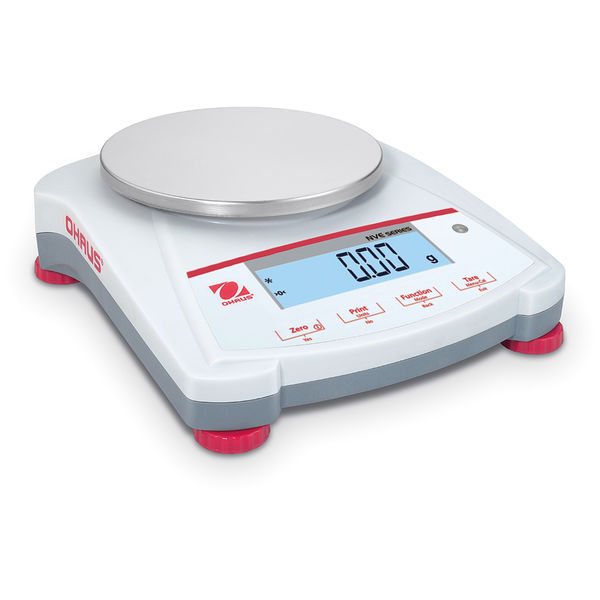

NVE612UK

Maximum Capacity	610 g
Readability	0.01 g
Pan Size	5.7 in (145 mm)
Item Number:	30498880

Request a Quote ADD TO QUOTE LIST

View All NVE Series Models

Overview
Specs
Accessories
Documents

Overview

NVE series portable balances are designed for demanding classroom applications with features such as superior overload protection and a stackable design. Durably constructed and multifunctional, the NVE is a powerful balance that can handle a diverse range of weighing applications in the classroom such as parts counting, percent weighing, and checkweighing.

Applications

Weighing, Parts Counting, Percent Weighing, Checkweighing

Display

Liquid Crystal Display (LCD) with backlight

Operation

AC adapter (included) or 4 C batteries (not included)

Communication

RS232, USB, or Ethernet (available as accessories)

Construction

ABS housing, stainless steel pan, transportation lock, slip-resistant and adjustable feet, leveling bubble

Design Features

Menu and calibration lock switch, mechanical and software overload/underload protection, stability indicator, low battery indicator, auto shut-off, user-selectable print options, user-selectable communication settings

Specifications

Maximum Capacity	610 g
Readability	0.01 g
Pan Size	5.7 in (145 mm)
Battery Life	270 Hours with Disposable Batteries
Legal for Trade	Not Applicable
Dimensions	9.1 in x 2.8 in x 8 in (230 mm x 70 mm x 204 mm) (LxHxW)
Tare Range	To capacity by subtraction
Working Environment	50°F – 104°F, 85%RH, non-condensing (10°C – 40°C, 85% RH, non-condensing)
Net Weight	2.2 lb (1 kg)
In-Use Cover	No
Transportation Case	Available as an Accessory
Communication	Ethernet (Available as an Accessory);RS232 (Available as an Accessory);USB Device (Available as an Accessory)
Power	4 C (LR14) Batteries (Not Included);AC Adapter (Included)
Units of Measurement	Newton;Gram;Pound;Ounce
Display	LCD Display with white backlight
Pan Construction	Stainless Steel
Stabilization Time	1.5 s
Repeatability, typical	0.02 g
Linearity ±	0.02 g
Auxiliary Display Model	Not Applicable
