D31P30BR

Maximum Capacity	66 lb (30 kg)
Readability	0.01 lb (5 g)
Readability (Certified)	0.02 lb (10 g)
Item Number:	72200167

Overview
Specs
Accessories
Documents

Overview

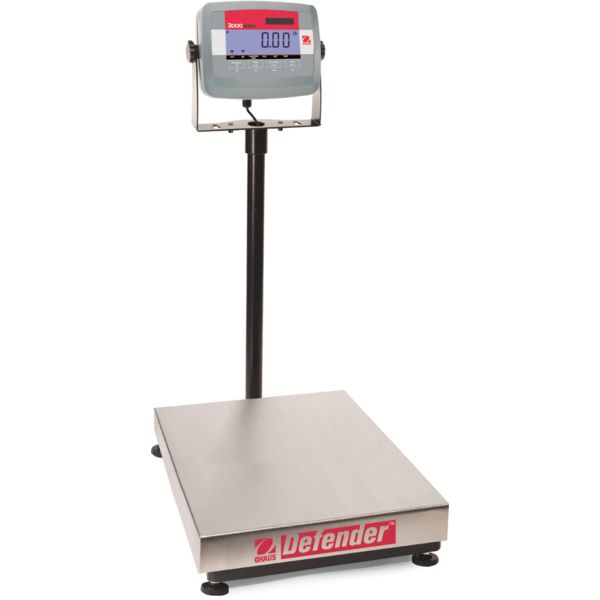

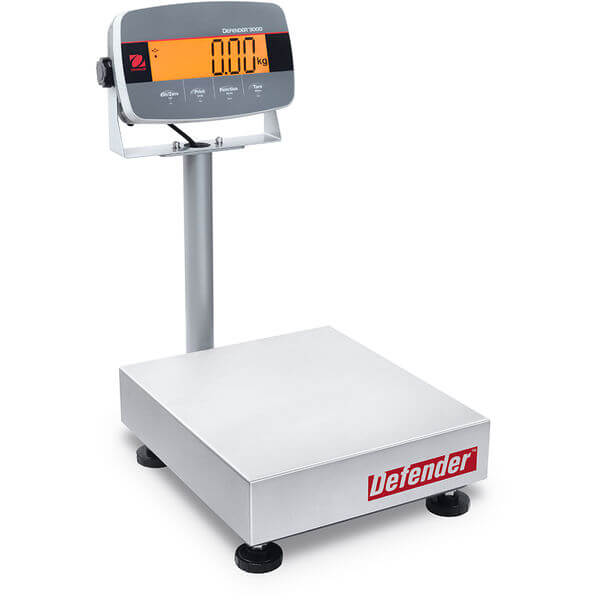

The OHAUS Defender 3000 Series line of bench scales is ideal for general weighing and simple counting applications in production, packaging, warehouse, inventory, shipping and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, backlit LCD display, built-in rechargeable battery operation and flexible mounting capabilities.

Applications

Weighing, Parts Counting

Display

Backlit liquid crystal display (LCD)

Operation

AC adapter (included) or rechargeable battery (included)

Communication

Easy access communication port with RS232 interface (included)

Construction

ABS indicator with reversible rear cover, painted steel column and wall bracket, 304 grade stainless steel platform with painted steel tubular frame, IP67 aluminum load cell, self-adjusting stainless steel feet with removable rubber caps

Design Features

125% overload protection

Specifications

Maximum Capacity	66 lb (30 kg)
Readability	0.01 lb (5 g)
Readability (Certified)	0.02 lb (10 g)
Platform Size	14 in x 12 in (355 mm x 305 mm)
Legal for Trade	NTEP Certified; EC Type Approvable; Measurement Canada Approved
Power	Rechargeable Battery (Included); AC Adapter (Included)
Battery Life	100 Hours with Rechargeable Battery
Communication	RS232 (Included)
Dimensions	18.6 in x 22.5 in x 12 in (472 mm x 572 mm x 305 mm) (LxHxW)
Display	LCD display with white backlight
In-Use Cover	Available as an Accessory
Net Weight	26 lb (12 kg)
Outputs	Not Applicable
Platform Construction	Stainless Steel
Protection Rating	Not Applicable
Second Scale Input	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Gram; Kilogram; Pound; Ounce; Pound:Ounce
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
