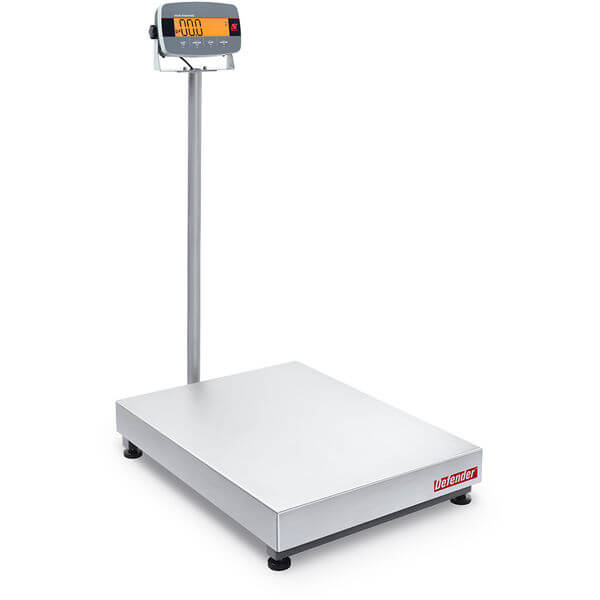

D33P300B1V3-M

Maximum Capacity	300 kg
Readability	100 g
Readability (Certified)	100 g
Item Number:	30685112

Request a Quote ADD TO QUOTE LIST

View All Defender™ 3000 - i-D33 Models

Overview
Specs
Accessories
Documents

Overview

The Defender 3000 Series bench scales are ideal for general weighing, simple counting, and checkweighing applications in production, packaging, warehouse, inventory, shipping, and receiving areas. The Defender 3000 Series features a simple, yet rugged tubular-frame base design and indicators with tactile keys, multicolor backlit LCD display, AC or battery operation, and flexible mounting capabilities.

Applications

Weighing, Checkweighing, Counting, Totalization.

Display

7 Segment LCD with multicolor backlight

Operation

AC Power (included), 6C (LR14) Batteries (not included), or Rechargeable Battery

Communication

Standard RS232 and optional USB Device or Ethernet

Construction

ABS plastic indicator, 304-stainless steel platform, powder-coated steel tubular frame, aluminum load cell, non-slip adjustable rubber feet

Design Features

150% overload protection

Specifications

Maximum Capacity	300 kg
Readability	100 g
Readability (Certified)	100 g
Platform Size	800 mm x 600 mm
Legal for Trade	EC Type Approved;OIML
Power	6 C (LR14) Batteries (Not Included);Rechargeable Battery (Not Included);AC Adapter (Included)
Dimensions	933 mm x 14195 mm x 600 mm (LxHxW)
Tare Range	To capacity by subtraction
Working Environment	-10°C – 40°C, 85%RH, non-condensing
Platform Construction	Stainless Steel
Net Weight	46 kg
Second Scale Input	Not Applicable
Protection Rating	Not Applicable
Communication	Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Units of Measurement	Kilogram;Gram
Display	7 Segment LCD with multicolor backlight
Battery Life	100 Hours with Rechargeable Battery;360 Hours with Disposable Batteries
Outputs	Not Applicable
