Starter Pen Meters
Compact Design for Fast, Convenient Electrochemistry Measurement At Your Fingertips

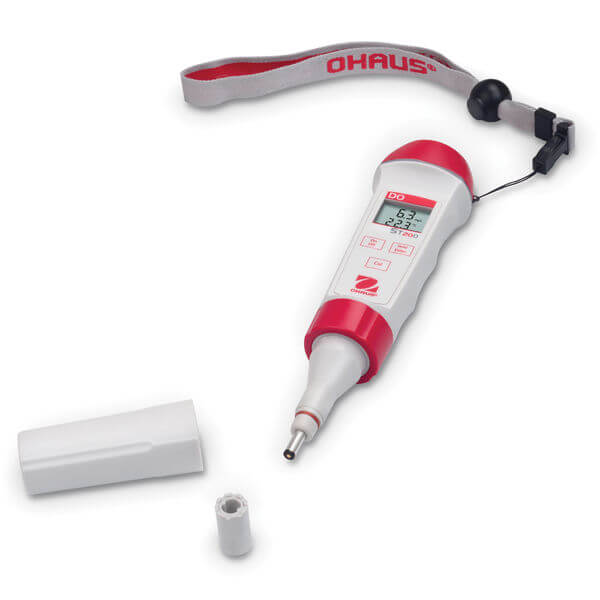

ST20D

Meter Type Dissolved Oxygen
Measurement Range 0.0 – 19.9 mg/L
Accuracy ±0.5 °C
Item Number: 30073986
Request a Quote ADD TO QUOTE LIST
View All Starter Pen Meters Models
Overview
After more than a century of perfecting the art of measurement through our durable weighing products, OHAUS precision is now available in a line of pen meters that provide accurate measurement of pH, oxidation-reduction potential (ORP), conductivity, salinity, and total dissolved solids (TDS). Starter pen meters are the economical option when you are simply looking for meters that will provide accurate measurement without restriction.
Applications
pH, oxidation-reduction potential (ORP), conductivity, dissolved oxygen (DO), salinity, total dissolved solids (TDS), temperature measurement
Display
Liquid crystal display (LCD) display with secondary information line (on select models)
Operation
4 1.5V batteries (included)
Communication
N/A
Construction
ABS Housing
Design Features
Easily replaceable electrodes, automatic shut off feature
Specifications
Meter Type Dissolved Oxygen
Measurement Range 0.0 – 19.9 mg/L
Accuracy ±0.5 °C
Measurement Resolution 0.1 mg/L
Display LCD
ATC Yes
Temperature compensation Automatic
Accuracy ± (Temperature) 0.5 °C
Automatic Shutdown Yes, After 6 minutes of non-use
Battery Life 100 Hours with Disposable Batteries
Calibration 1 Point
Dimensions 1.5 in x 7.28 in x 1.77 in (38 mm x 185 mm x 45 mm) (LxHxW)
Net Weight 3.88 oz (110 g)
Number of Buttons 3
Power 4 AG13 Batteries (Included)
Protection Rating IP67
Temperature Display Yes
Temperature Range 0 °C – 99 °C
Temperature Sensor 50 KΩ NTC
Working Environment 41°F – 104°F, 80% RH, Non-condensing (5°C – 40°C, 80% RH, Non-condensing)
Wrist Strap Yes
Accessories

Item Number

30222084

Description

Membrane Kit Replaceable, ST20D

Request a Quote Add To Quote List Remove From Quote List

Item Number

30222083

Description

Pen Electrode, ST20D
