AP50MM-F

Fixed wavelength	365 nm;420 nm;455 nm;525 nm;560 nm;570 nm;630 nm
Photometric Measuring Range	0 Abs ~ 1 Abs
Photometric Accuracy	± 0.005 Abs @1.0 Abs Nominal
Item Number:	30853393

Request a Quote ADD TO QUOTE LIST

View All AP50 Portable Colorimeters Models

Overview
Specs
Accessories
Documents

Overview

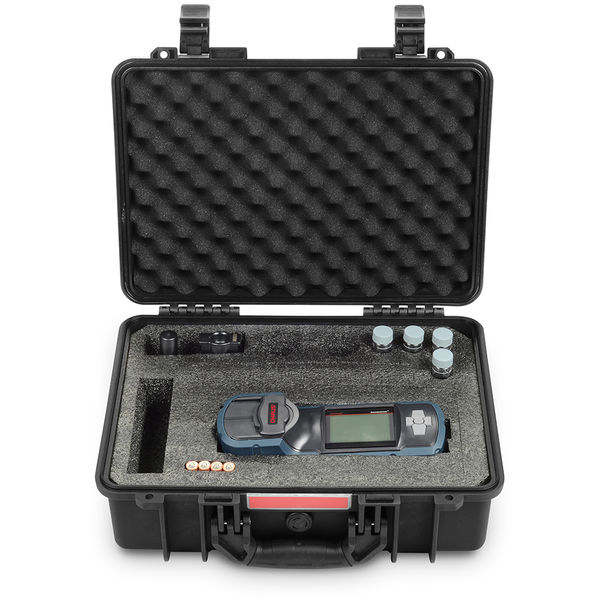

The AquaSearcher AP50MM multifunction portable Photometer is designed intuitively to provide fast, reliable colorimetric and turbidity measurements. Its rugged single-handed design makes it perfect for field applications and the carrying case holds all test accessories. The AP50MM allows the user to pre-program testing parameters to increase efficiency.

Applications

Multi-parameter colorimetry, turbidity

Display

Backlit Graphical LCD, 160×240 pixels

Operation

4 AA (LR6) Batteries (Included)

Construction

Scattering turbidity method; Briefcase

Design Features

30,000 Group with Date, Time；support auto-off

Specifications

Fixed wavelength	365 nm;420 nm;455 nm;525 nm;560 nm;570 nm;630 nm
Photometric Measuring Range	0 Abs ~ 1 Abs
Photometric Accuracy	± 0.005 Abs @1.0 Abs Nominal
Turbidity Optical System	Nephelometric
Data Storage	30,000 Group with Date, Time
Battery Life	6 months (typical) @25 readings a week
Dimensions	10.43 in x 2.72 in x 3.47 in (265 mm x 69 mm x 88 mm) (LxHxW)
Display	Backlit Graphical LCD, 160×240 pixels
Net Weight	1.32 lb (0.6 kg)
Power	4 AA (LR6) Batteries (Included)
Sample Vials Compatibility	Round Ø24mm
Source Lamp	Light Emitting Diode (LED)
Storage temperature range	18 °C - 60 °C ~ 0 °F - 140 °F
Turbidity Detection Limit NTU	1
Turbidity Excitation Wavelength	IR LED;White
Turbidity Measuring Range NTU	0 - 200
Turbidity Reproducibility	1 NTU
Wavelength accuracy	±1.0nm
Wavelength Selection	Automatic
Working Altitude	Up to 2000m
Working Environment	4 ~ 41 °C , 85%RH, non-condensing (40 ~ 106 ºF, 85%RH, non-condensing)
