This item has been discontinued. May we suggest something new:
Enlarge

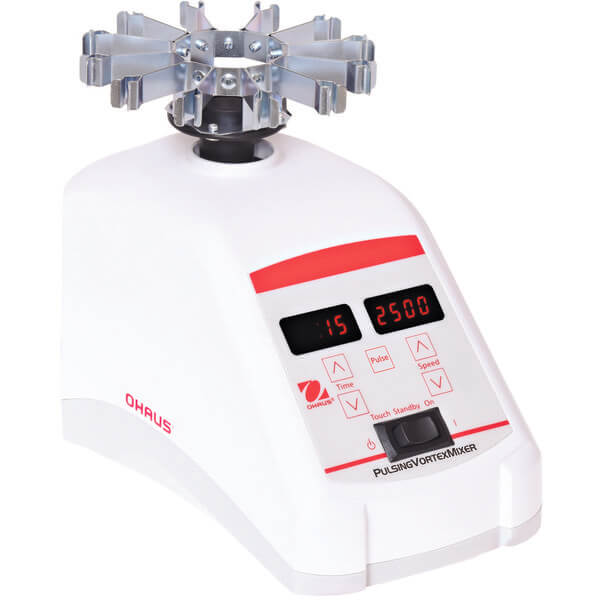

Vortex Mixers
Choose the Perfect Vortex Mixer From Four Durable Models for Everyday Mixing

VXMNPS

Control Pulsing
Duty Rating Intermittent
Orbit 0.1 in (2.5 mm)
Item Number: 30392129
Overview
Four OHAUS Vortex Mixer models for gentle to high-speed reliable mixing. Non-digital model offers variable speed control, and digital model allows input of the exact speed and time to achieve repeatable results every time. Pulsing model features a unique pulse action that reduces heat generation, while providing more effective mixing and cell disruption. Fixed speed model offers simple one-touch, high-speed mixing for repeat applications.
Applications
Re-Suspending Liquids, Mixing Reagents, Buffers and Emulsions, ELISA Assay, Drug Extractions, Mixing Samples
Display
Independent LED displays for speed/time allow the operator to view both settings simultaneously (digital models) and adjustment knob with dial markings for variable speed control (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cup head and 3-inch accessory platform for beakers, flasks, test tubes etc. (included with all models), stainless steel microtube holder for 12 tubes (pulsing models)
Design Features
Microprocessor-control to maintain set speed for consistent mixing action (digital models)
Specifications
Control Pulsing
Duty Rating Intermittent
Orbit 0.1 in (2.5 mm)
Speed Range 500 rpm – 3000 rpm
Capacity 0.5 kg
Timer 1 s - 9,999 min
Dimensions 8.3 in x 6.5 in x 4.8 in (21 cm x 16.5 cm x 12.3 cm) (LxHxW)
Net Weight 9.7 lb (4.4 kg)
Power 120V, 1.2A, 50/60Hz
Power Consumption 135 W
Safety Certification TUV
Working Environment 39°F – 104°F, 20% – 85%RH, non-condensing (4°C – 40°C, 20% – 85%RH, non-condensing)
Accessories

Item Number

30400234

Description

Flat Foam Insert, Pack of 2

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400204

Description

0.5 mL Micro-Tube Holder

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400237

Description

Rubber Cover for 3-inch Flat Head

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400205

Description

1.5-2.0 mL Micro-Tube Holder

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400228

Description

Vessel Harness, Pack of 2

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400206

Description

1.5-2.0 mL Stainless Steel Tube Holder

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400230

Description

14-19mm Tube Holder (2x) 8x13mm and 8x16mm

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400231

Description

20-25mm Tube Holder (2x) 8x25mm and 5x20mm

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400236

Description

3-inch Flat Head w/o Rubber Cover

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400196

Description

3-inch Flat Head with Rubber Cover

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400229

Description

9-13mm Tube Holder (2x) 10x8mm and 8x10mm

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400208

Description

Ampule Tube Holder Grip Range 10-17mm

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400207

Description

Ampule Tube Holder Grip Range 15-17mm

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400235

Description

Cup Head

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400227

Description

Insert Retainer

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400199

Description

Microplate Holder (2x) with Retainer

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400198

Description

Microtube and Plate Holders with Retainer

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400232

Description

Microtube Holder (2x) 24x5.5mm and 24x7.9mm

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400200

Description

Microtube Kit (2x) with Retainer

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400233

Description

Micro-Well Plate Holder, Pack of 2

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400202

Description

Single Tube Holder

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400203

Description

Single Tube Holder Adapter Vortex Genie

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400201

Description

Tube Holder Kit

Request a Quote Add To Quote List Remove From Quote List

Item Number

30400197

Description

Tube Holder Kit with Retainer and Harness
