1 Block Dry Block Heaters
Versatile block heaters designed for everyday use with accessories for every application

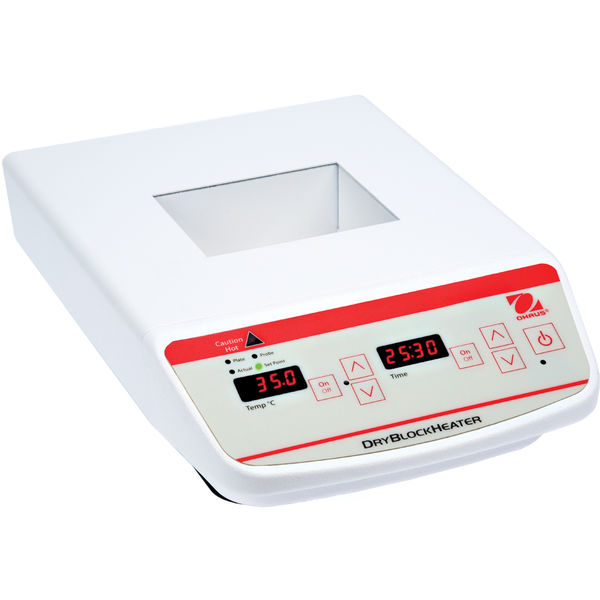

HB1DG

Control Digital
Temp. Range Ambient + 5°C – 120°C
Stability ± 0.1°C
Item Number: 30392059
Overview
Versatile Dry Block Heaters are ideal for applications that require temperature stability. All units hold one optional interchangeable modular block with over 40 choices. Blocks are easy to use, no tools required. Close tube-to-block contact enables maximum heat retention, resulting in efficient heating. Digital models offer exceptional temperature uniformity and stability for repeatable results, while non-digital models are an economical choice.
Applications
Incubation & Activation of Cultures, Enzyme Reactions, Immunoassays, Melting/Boiling Points, Isothermal Incubations, Nucleic Acid Denaturation
Display
LED display (digital models) and dual-adjustment knobs with dial markings (analog models)
Operation
Detachable 3-wire cord and plug (included), analog models require an external thermometer or temperature device for temperature setpoint
Communication
N/A
Construction
Painted steel housing, support rod holder with locking knob
Design Features
Touchpad control and audible alarm (digital models)
Specifications
Control Digital
Temp. Range Ambient + 5°C – 120°C
Stability ± 0.1°C
Uniformity Within the Block ± 0.1°C at 37°C
Heat Up Time 16 min
Calibration Temperature calibration
Dimensions 12.4 in x 3.5 in x 8 in (31.5 cm x 8.9 cm x 20.3 cm) (LxHxW)
Net Weight 5.5 lb (2.5 kg)
Overshoot Protection 10°C above set point
Power 120V, 0.92A, 50/60Hz
Power Consumption 110 W
Safety Certification TUV
Uniformity Across Similar Blocks Not Applicable
Working Environment 64°F – 91°F, 20% – 80%RH, non-condensing (18°C – 33°C, 20% – 80%RH, non-condensing)
Accessories

Item Number

30400177

Description

Sand, 0.5 kg (1 Lb) Bag

Item Number

30400170

Description

Module Block 0.2 mL Micro 64 Hole

Item Number

30400246

Description

Stainless Steel Probe Kit

Item Number

30400169

Description

Module Block 0.2 mL Micro 80 Hole

Item Number

30400178

Description

Stainless Steel Shot, 0.5 kg (1 Lb)

Item Number

30400157

Description

Module Block 0.5 mL Microtaper

Item Number

30400159

Description

Module Block 1.5 mL Microtaper

Item Number

30400151

Description

Module Block 10 mm Test Tube

Item Number

30400162

Description

Module Block 11.5/1.5 mL Microcentrifuge

Item Number

30400195

Description

Module Block 12 Holes 17-18 mm

Item Number

30400165

Description

Module Block 12/13 mm 16 Holes

Item Number

30400152

Description

Module Block 12/13 mm 20 Hole

Item Number

30400172

Description

Module Block 15 mL Conical Centrifuge

Item Number

30400153

Description

Module Block 15/16 mm 12 Hole

Item Number

30400154

Description

Module Block 20 mm 8 Well Test Tube

Item Number

30400155

Description

Module Block 25 mm Test Tube 6 Hole

Item Number

30400163

Description

Module Block 250 Microliter/6 mm

Item Number

30400167

Description

Module Block 4 X 35 mm Test Tube

Item Number

30400168

Description

Module Block 50mLConical Centrifuge

Item Number

30400158

Description

Module Block 6 mm Test Tube

Item Number

30400156

Description

Module Block Combination

Item Number

30400194

Description

Module Block Combo - Micro Tube

Item Number

30400193

Description

Module Block Combo, 50 mL, 15 mL, 1.5 mL

Item Number

30400161

Description

Module Block Cuvette - 12 Cuvet

Item Number

30400182

Description

Module Block For Vials 12 mm

Item Number

30400183

Description

Module Block For Vials 15 mm

Item Number

30400190

Description

Module Block For Vials 16 mm

Item Number

30400184

Description

Module Block For Vials 17 mm

Item Number

30400185

Description

Module Block For Vials 19 mm

Item Number

30400186

Description

Module Block For Vials 21 mm

Item Number

30400187

Description

Module Block For Vials 23 mm

Item Number

30400188

Description

Module Block For Vials 25 mm

Item Number

30400189

Description

Module Block For Vials 28 mm

Item Number

30400160

Description

Module Block Solid

Item Number

30400192

Description

Module Block, 2.0 mL Corning Tube

Item Number

30400191

Description

Module Block, 2.0 mL Tube

Item Number

30400173

Description

Sand Bath, 1 Block Unit
