1560-SD

Maximum Capacity	2,000 g
Readability	0.1 g
Pan Size	5.9 in (150 mm)
Item Number:	80000005

Request a Quote ADD TO QUOTE LIST

View All Harvard Trip™ Models

Overview
Specs
Accessories
Documents

Overview

The Harvard Trip balance is carefully engineered to provide the accuracy necessary in comparative weighing.

Applications

Weighing

Display

Deep notched and tiered beams

Operation

N/A

Communication

N/A

Construction

All-metal base and beam, stainless steel pan

Design Features

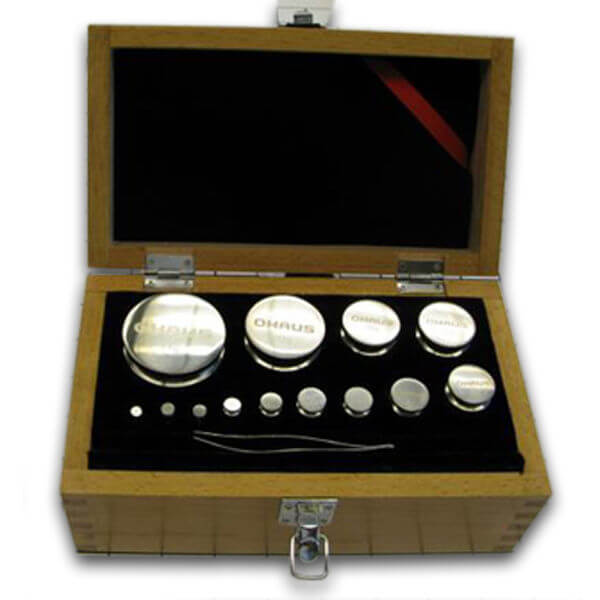

Weight set (2000g model, accessory sold separately), built-in sliding masses, magnetic damping, self-aligning beam design and floating agate bearings, counterbalancing knob for quick zeroing, hardened steel edges

Specifications

Maximum Capacity	2,000 g
Readability	0.1 g
Pan Size	5.9 in (150 mm)
Beams	2 Beams and Tare Beam
Dimensions	9.44 in x 6.29 in x 5.51 in (240 mm x 160 mm x 140 mm) (LxHxW)
Linearity ±	0.1 g
Net Weight	2.7 kg
Pan Construction	Stainless Steel
Power	No Power Required
Units of Measurement	Gram
