DFD32M2500ES

Maximum Capacity	2,500 lb (1,250 kg)
Readability	0.5 lb (0.2 kg)
Platform Size	30 in x 30 in (762 mm x 762 mm)
Item Number:	30469911

Request a Quote ADD TO QUOTE LIST

View All Defender™ Drum Scales - DFD32M Models

Overview
Specs
Accessories
Documents

Overview

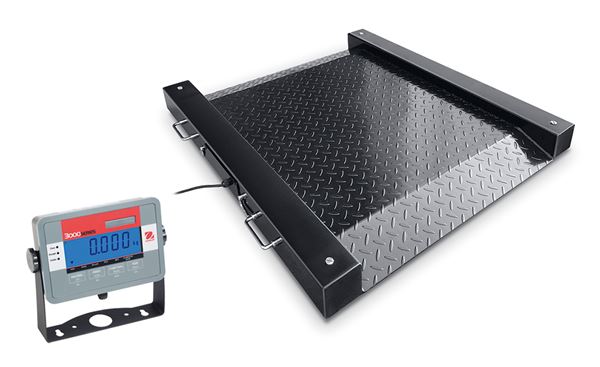

The Defender 3000 Drum Scale is a durable portable floor scale designed for industrial applications. It features a mild steel platform with treads, built-in front/back access ramps, 4 load cells (with alloy steel feet & top leveling), and the popular T32M indicator for clear display of weighing results. For rapid portability, the base can be turned onto its side using the stainless steel handles and it can moved around the shop floor using the two built-in wheels.

Applications

Weighing, Counting Parts, Checkweighing, Accumulation, Dynamic/Display Hold

Display

Backlit liquid crystal display (LCD)

Operation

AC adapter with Auto Shut-off feature (included)

Communication

Easy access communication port including RS232 interface (included)

Construction

Painted steel platform with treads, front ABS/rear painted carbon steel, indicator & mounting bracket, aluminum junction box, four alloy steel load cells with top height adjustment, front/back access ramps

Design Features

Low-profile design

Specifications

Maximum Capacity	2,500 lb (1,250 kg)
Readability	0.5 lb (0.2 kg)
Platform Size	30 in x 30 in (762 mm x 762 mm)
Battery Life	Not Applicable
Communication	RS232 (Included)
Dimensions	40.4 in x 4 in x 37.9 in (1,024 mm x 100 mm x 962 mm) (LxHxW)
Display	LCD Display with white backlight
Legal for Trade	No
Net Weight	101 lb (46 kg)
Outputs	Not Applicable
Platform Construction	Painted Steel Diamond Plate
Power	AC Adapter (Included)
Protection Rating	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Gram;Kilogram;Pound;Ounce;Pound:Ounce
Working Environment	14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
