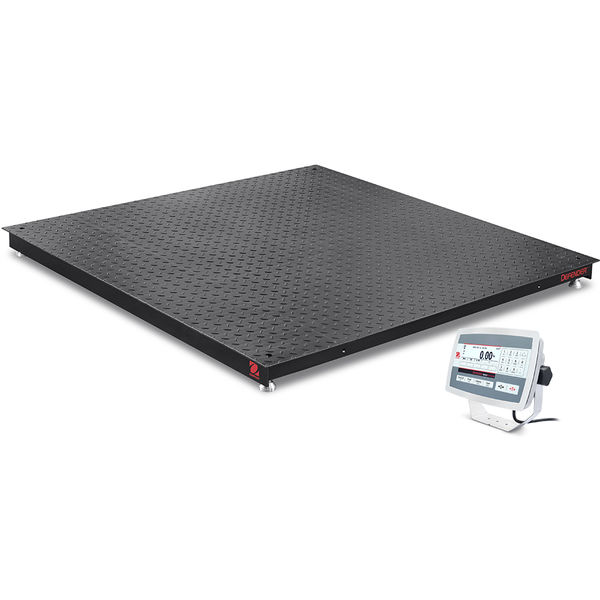

DF52XW2500B1L

Maximum Capacity	2,500 lb (1,250 kg)
Readability	0.5 lb (0.2 kg)
Readability (Certified)	0.5 lb (0.5 kg)
Item Number:	30837707

Request a Quote ADD TO QUOTE LIST

View All Defender™ 5000 Floor Scales - i-DF52 Models

Overview
Specs
Accessories
Documents

Overview

Defender 5000 Series Floor Scales meet advanced weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features software for Counting, Checkweighing, Accumulation, Display Hold, and other modes. Ramps and mounting plates are available.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold), Filling

Display

Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

Operation

Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)

Communication

Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock

Construction

ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available

Design Features

Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity	2,500 lb (1,250 kg)
Readability	0.5 lb (0.2 kg)
Readability (Certified)	0.5 lb (0.5 kg)
Platform Size	4 ft x 4 ft (1,219 mm x 1,219 mm)
Battery Life	10 Hours with Rechargeable Battery
Legal for Trade	NTEP Certified
Dimensions	4 ft x 3.5 in x 4 ft (1,219 mm x 90 mm x 1,219 mm) (LxHxW)
Tare Range	To capacity by subtraction
Working Environment	-10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing)
Platform Construction	Painted Steel Diamond Plate
Net Weight	269 lb (122 kg)
Protection Rating	Not Applicable
Communication	Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory)
Power	Rechargeable Battery (Not Included);AC Power (Included)
Units of Measurement	Metric Tons;Kilogram;Pound;Tonne;Custom
Display	Dot matrix LCD with white LED backlight
Outputs	4 - 20mA;2 In/4 Out digital I/O
