DF33XW2500B1R

Maximum Capacity	2,500 lb (1,250 kg)
Readability	0.5 lb (0.2 kg)
Readability (Certified)	0.5 lb (0.5 kg)
Item Number:	30837691

Request a Quote ADD TO QUOTE LIST

View All Defender™ 3000 Floor Scales - i-DF33 Models

Overview
Specs
Accessories
Documents

Overview

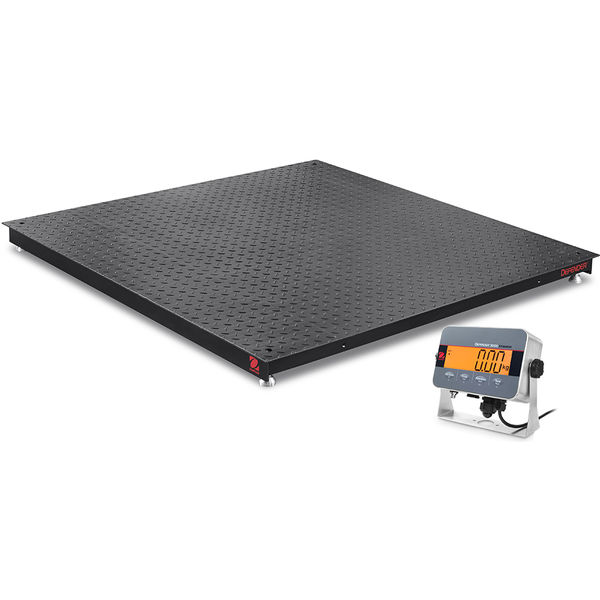

Defender 3000 Floor Platforms meet dry weighing needs for industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. The indicator features a bright display that changes color when in check mode. Scale also includes counting and totalization modes. Ramps and mounting plates are available.

Applications

Weighing, Checkweighing, Counting, Totalization

Display

7 Segment LCD with multicolor backlight

Operation

Internal power supply with power cord (included), 6C (LR14) batteries (not included) or rechargeable battery (not included)

Communication

Standard RS232 and optional USB Device or Ethernet

Construction

ABS plastic or 304 stainless steel indicator, 5 mm/0.196 in. fixed top plate, black painted steel treaded platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available

Design Features

Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)

Specifications

Maximum Capacity	2,500 lb (1,250 kg)
Readability	0.5 lb (0.2 kg)
Readability (Certified)	0.5 lb (0.5 kg)
Platform Size	3 ft x 3 ft (914 mm x 914 mm)
Battery Life	30 Hours with Rechargeable Battery
Legal for Trade	NTEP Certified
Dimensions	3 ft x 3.5 in x 3 ft (914 mm x 90 mm x 914 mm) (LxHxW)
Tare Range	To capacity by subtraction
Working Environment	-10°C – 40°C, 85%RH, non-condensing (14°F – 104°F, 85%RH, non-condensing)
Platform Construction	Painted Steel Diamond Plate
Net Weight	225 lb (102 kg)
Protection Rating	Not Applicable
Communication	Ethernet (Available as an Accessory);RS232 (Included);USB (Available as an Accessory)
Power	AC Power (Included);Rechargeable Battery (Included)
Units of Measurement	Metric Tons;Kilogram;Pound
Display	7 Segment LCD with multicolor backlight
Outputs	Not Applicable
