D52XW125RQL5

Maximum Capacity	250 lb (125 kg)
Readability	0.01 lb (5 g)
Readability (Certified)	0.05 lb (20 g)
Item Number:	30467615

Request a Quote ADD TO QUOTE LIST

View All Defender™ 5000 - D52 Models

Overview
Specs
Accessories
Documents

Overview

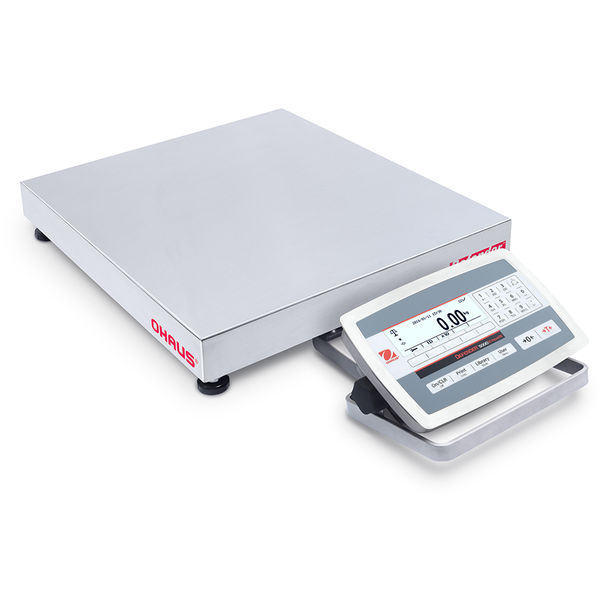

The OHAUS next generation Defender 5000 Series multifunctional bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.

Applications

Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)

Display

Backlit Liquid Crystal Display (LCD), 256 x 80 pixels

Operation

Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)

Communication

Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock

Construction

ABS plastic (TD52P) or stainless steel (TD52XW) indicator, 304-grade stainless steel platform with sand gray powder-coated steel frame, aluminum load cell, non-slip adjustable rubber feet

Design Features

User-configurable resolution up to dual range 15,000d/3,000e (25000d/5000d for NTEP), 150% overload capacity protection, checkweighing symbols with selectable operation and audible signal settings, menu lock switch, multiple selectable operating languages, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, selectable adjust contrast settings, auto-dim display, auto-off, brightness adjustment, screensaver, auto tare

Specifications

Maximum Capacity	250 lb (125 kg)
Readability	0.01 lb (5 g)
Readability (Certified)	0.05 lb (20 g)
Platform Size	18 in x 18 in (457 mm x 457 mm)
Legal for Trade	NTEP Certified;Measurement Canada Approved
Power	Rechargeable Battery (Not Included);AC Power (Included)
Battery Life	20 Hours with Rechargeable Battery
Communication	Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232 (Included);USB Host (Available as an Accessory);WiFi/Bluetooth (available as an accessory)
Dimensions	28.9 in x 4.8 in x 18 in (734 mm x 122 mm x 457 mm) (LxHxW)
Display	Dot matrix LCD with white LED backlight
Net Weight	33.1 lb (15 kg)
Outputs	4 - 20mA;2 In/4 Out digital I/O
Platform Construction	Stainless Steel
Protection Rating	Not Applicable
Second Scale Input	Not Applicable
Tare Range	To capacity by subtraction
Units of Measurement	Metric Tons;Gram;Kilogram;Pound;Tonne;Custom;Ounce;Pound:Ounce
Working Environment	14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
