This item has been discontinued. May we suggest something new:
Enlarge

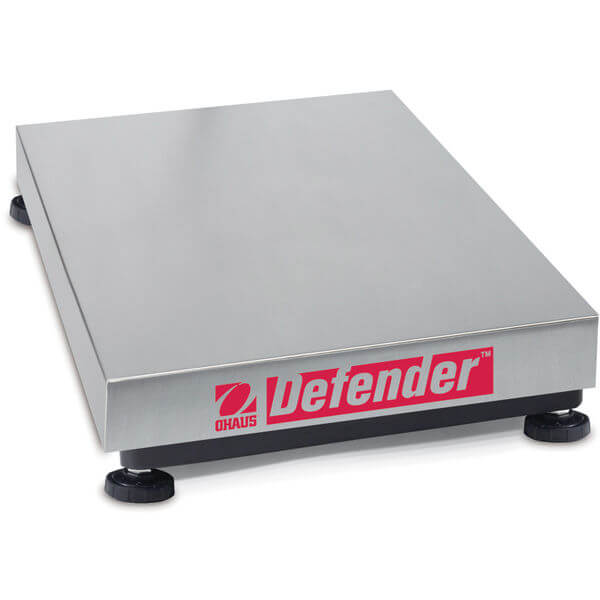

Defender™ V Series Stainless Steel Bases
Economical Base for Washdown Industrial Weighing.

D300VX

Maximum Capacity 600 lb (300 kg)
Readability 0.1 lb (50 g)
Readability (Certified) 0.2 lb (100 g)
Item Number: 30379447
Overview
The Defender™ V Series bases offer economical yet durable performance for industrial weighing in washdown environments. With NTEP certification, Measurement Canada and EC approval, these bases can be used for both general applications as well as where legal for trade performance is required.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction
304 grade stainless steel platform, stainless steel tubular frame, IP67 stainless steel load cell, level indicator
Design Features
125% capacity overload protection
Specifications
Maximum Capacity 600 lb (300 kg)
Readability 0.1 lb (50 g)
Readability (Certified) 0.2 lb (100 g)
Platform Size 25.6 in x 19.7 in (650 mm x 500 mm)
Legal for Trade NTEP Certified;Measurement Canada Approved
Protection Rating IP67
Dimensions 25.6 in x 5.6 in x 19.7 in (650 mm x 143 mm x 500 mm) (LxHxW)
Net Weight 73 lb (33 kg)
Platform Construction Stainless Steel
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

30372146

Description

Wheel Kit, Defender Series
