Floor Scales

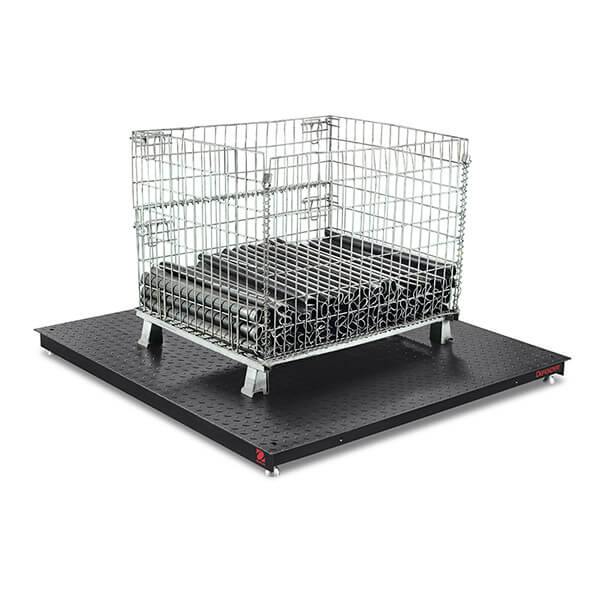

Defender™ 3000 Floor Scale Platforms

Platforms for Basic Industrial Applications
Defender 3000 Floor Platforms meet dry weighing needs in industrial and commercial use. Their high-quality construction is designed to minimize flexing under heavy loads for years of dependable performance. Defender 3000 Series floor platforms offer a unique combination of value and dependability that your company can rely on. Ramps and mounting plates are available.
Defender™ 3000 Floor Scale Platforms Features
Painted carbon steel, treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500 lb. to 5,000 lb. with NTEP-certified 5,000e performance, allowing greater flexibility for your weighing needs.
Platforms are equipped with a 20ft EasyConnect™ cable that allows instant configuration with Defender indicators for quicker installation.
Defender™ 3000 Floor Scale Platforms Models
Maximum Capacity
Show More
Readability
Show More
Readability (Certified)
Show More
Platform Size
Show More
Protection Rating
Show More
Legal for Trade
Show More
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
2,500 lb (1,250 kg)
Readability
0.5 lb (0.2 kg)
Readability (Certified)
0.5 lb (0.5 kg)
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Maximum Capacity
5,000 lb (2,500 kg)
Readability
1 lb (0.5 kg)
Readability (Certified)
1 lb (0.5 kg)
Defender™ 3000 Floor Scale Platforms Product Details
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction
5 mm/0.196 in. fixed top plate, black treaded painted steel platform, IP65 stainless steel junction box with side access, alloy steel load cells, two carbon steel eye bolts, painted steel ramp available
Design Features
Four load cell mounted feet with self-swiveling ball-in-cup design, painted and stainless steel floor stands (available as accessories)
