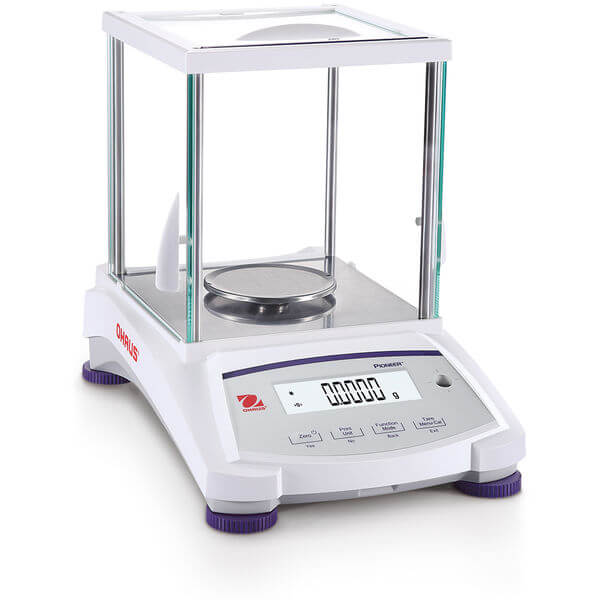

PJX Carat Series

Modern Compact Jewelry Balances for Accurate Weighing of Precious Metals and Stones

PJX203

Maximum Capacity	40 g/200 ct
Readability	0.0001 g;0.001 ct
Pan Size	3.5 in (90 mm)
Item Number:	30429782

Request a Quote ADD TO QUOTE LIST

View All PJX Carat Series Models

Overview
Specs
Accessories
Documents

Overview

The PJX Series offers a range of Jewelry Balances for weighing precious metals and stones in a variety of capacities and readabilities. The PJX Series is OIMLapproved and ideal for legal-for-trade applications. The PJX features an auxiliary display that can be easily connected to provide simultaneous viewing of results for both trader and customer. Select models come with a built-in internal adjustment system.

Applications

Basic Weighing, Parts Counting, Percent Weighing, Density Determination

Display

Backlit Liquid Crystal Display (LCD)

Operation

AC adapter (included)

Communication

RS232 interface and Mini-Din port (for connecting auxiliary display)

Construction

Metal base, plastic top housing, removable stainless steel pan, removable glass draftshield or side doors, integrated weigh-below-hook, security bracket, calibration lock and in-use cover

Design Features

User-selectable environmental filters and brightness settings, auto-tare, auto-dim, user-selectable span calibration points, software lockout and reset menu, userselectable communication settings and data print options, user-definable project and user IDs, software overload/underload indicator, stability indicator

Specifications

Maximum Capacity	40 g/200 ct
Readability	0.0001 g;0.001 ct
Pan Size	3.5 in (90 mm)
Battery Life	Not Applicable
Communication	RS232
Auxiliary Display Model	Available as an Accessory
Dimensions	321 mm x 274 mm x 209 mm (LxHxW)
Display	LCD with backlight
Internal Calibration	InCal™ - Semi Automatic
In-Use Cover	Included
Legal for Trade	Not Applicable
Linearity ±	0.0002 g
Net Weight	10 lb (4.5 kg)
Pan Construction	Stainless Steel
Power	AC Adapter (Included)
Repeatability, typical	0.0001 g
Stabilization Time	3 s
Tare Range	To capacity by subtraction
Units of Measurement	Milligram;Ounce Troy;Pennyweight;Taiwan Tael;Gram;Grain;Carat;Ounce;Custom
Working Environment	operability guaranteed between 41°F and 104°F;50°F – 86°F, 80%RH, non-condensing (operability guaranteed between 5°C and 40°C;10°C – 30°C, 80%RH, non-condensing)
