Explorer™ Semi-Micro
Flagship Balances from OHAUS

EX125D

Maximum Capacity 52 g/120 g
Readability 0.01 mg;0.1 mg
Pan Size 3.14 in (80 mm)
Item Number: 30139510
Overview
When laboratory work and research requires accuracy to the hundred-thousandth, there is simply no room for error. The Explorer series of semi-micro balances has been designed with the technology to ensure that your very specific weighing results are accurate. Sophisticated laboratories requiring accuracy and looking for innovative technology to obtain measurement results can find both in Explorer semi-micro balances.
Applications
Weighing, Percent Weighing, Parts Counting, Check Weighing, Dynamic/Animal Weighing, Filling, Totalization, Formulation, Differential Weighing, Density Determination, Peak Hold, Pipette Adjustment, SQC
Display
Full-color VGA graphic display (5.7 in. diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad to quickly input GLP and GMP data and other application data
Operation
AC Adapter (Included)
Communication
Easy access communication ports including 2 units of USB port and RS232 and an optional fourth port of either RS232 or Ethernet. GLP/GMP Data Ouput with Real Time Clock. Data Transfer Function.
Construction
Metal base, ABS top housing, stainless steel pan,anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic door as option models
Design Features
AutoCal™ fully-automatic internal calibration system, fast stabilization time, four touchless sensors, built-in ionizer with automatic door models, up to 14 operating languages, OIML models available, SAVE to USB function, menu lock switch, security bracket, integral weigh below hook for below balance weighing applications, removable stainless steel weighing platform, stability indicator, overload and underload indicators, auto standby.
Specifications
Maximum Capacity 52 g/120 g
Readability 0.01 mg;0.1 mg
Pan Size 3.14 in (80 mm)
Internal Calibration AutoCal™ - Automatic
Draftshield Included
Auto Door Not Applicable
Auxiliary Display Model Available as an Accessory
Battery Life Not Applicable
Built-in Ionizer No
Communication Ethernet (Available as an Accessory);USB (Included);RS232 (Included);USB Host
Dimensions 15.5 in x 13.8 in x 9.1 in (393 mm x 350 mm x 230 mm) (LxHxW)
Display Full-color 5.7 in VGA, touch screen
In-Use Cover Included
Legal for Trade No
Linearity ± 0.1 mg
Minimum Weight (USP, 0.1%, typical) 20 mg
Net Weight 7 kg
Pan Construction Stainless Steel
Power AC Adapter (Included)
Repeatability, typical 0.015 mg
Stabilization Time 8 s
Tare Range To capacity by subtraction
Units of Measurement Ounce Troy;Pennyweight;Momme;Gram;Kilogram;Grain;Tola;Tical;Mesghal;Carat;Ounce;Custom
Working Environment 50°F – 86°F, 85%RH, non-condensing (10°C – 30°C, 85%RH, non-condensing)
Accessories

Item Number

80500572

Description

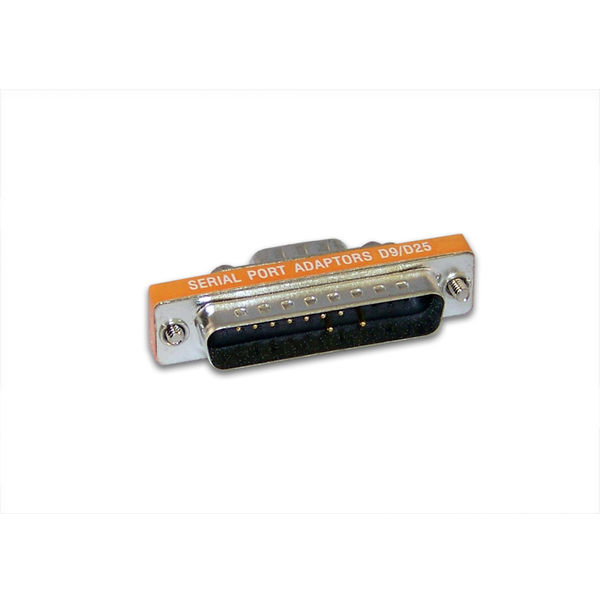

Adapter, 25 Pin-9 Pin, SF42 SRP275

Item Number

80850043

Description

Anti-Theft Device Lab Balance

Item Number

30045641

Description

Printer, Impact, SF40A

Item Number

80850000

Description

Anti-Theft Device, SP PA AV NV

Item Number

30472064

Description

Auxiliary display AD7-RS

Item Number

83021083

Description

Cable Extension  RS422 2m  EX EX-HiCap

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

21253677

Description

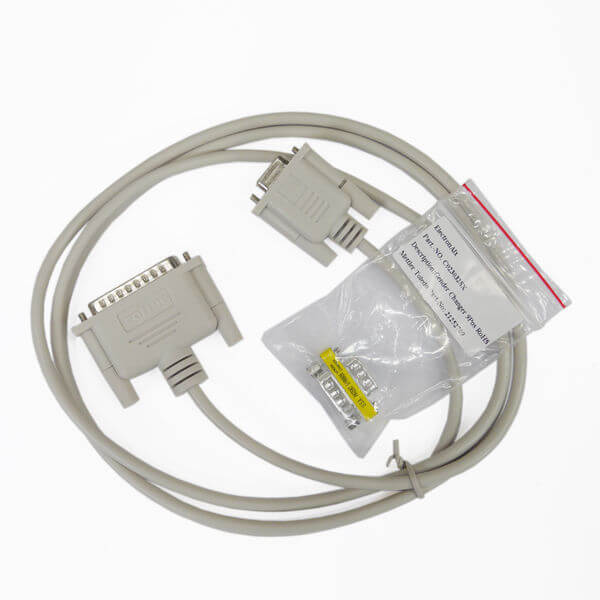

Cable SF42/SRP275-AV DV EX PA MB TxxP

Item Number

80252581

Description

Cable ST103-EX MB PA TxxP

Item Number

80500524

Description

Cable, 25 Pin-9 Pin, PC-TxxP

Item Number

30078078

Description

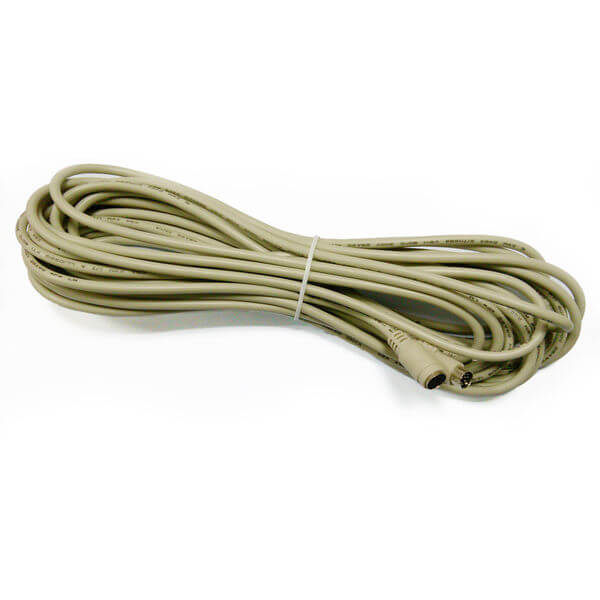

Cable, RS422, 9m, EX EX-HiCap

Item Number

83021085

Description

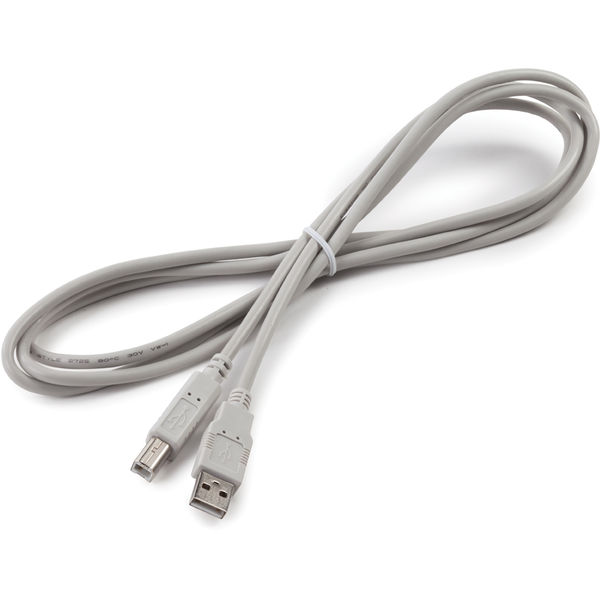

Cable, USB, Type A-B

Item Number

80253384

Description

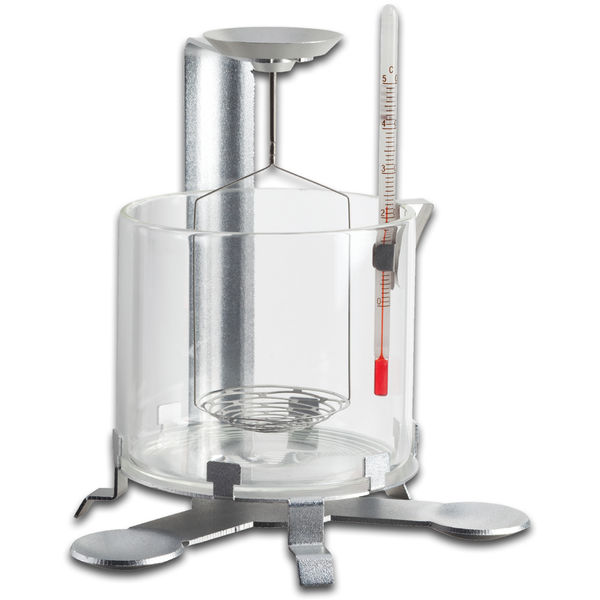

Density Kit, Solids

Item Number

30093334

Description

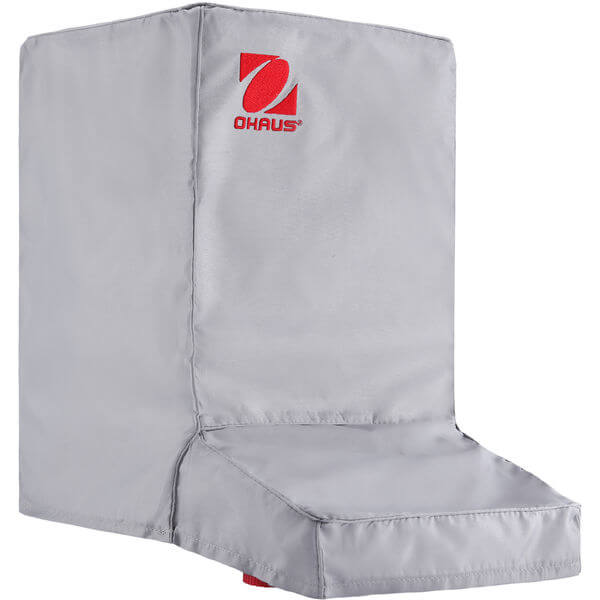

Dust Cover, Balance with Draft Shield

Item Number

83021082

Description

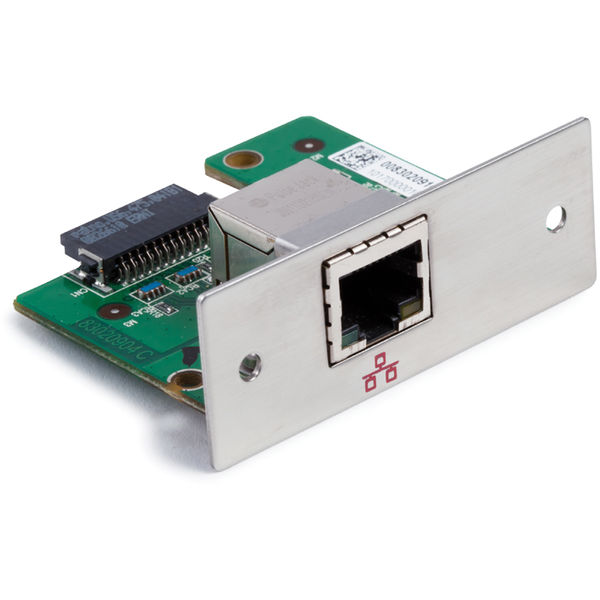

Ethernet Kit, EX EX-HiCap

Item Number

30304101

Description

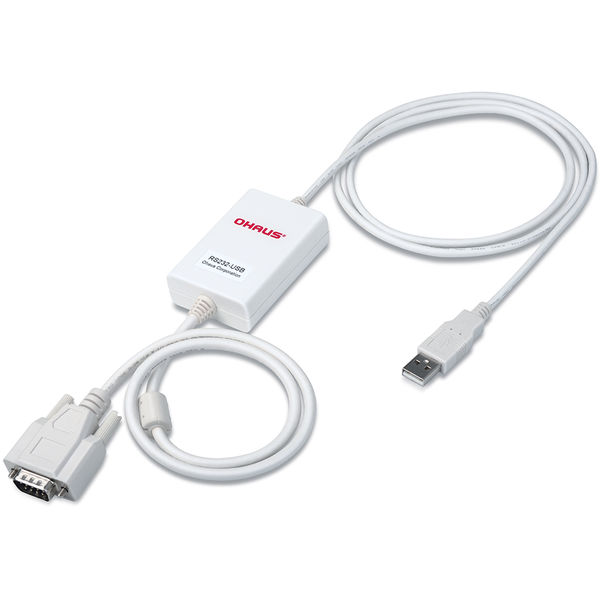

Interface Kit, RS232-USB

Item Number

83033633

Description

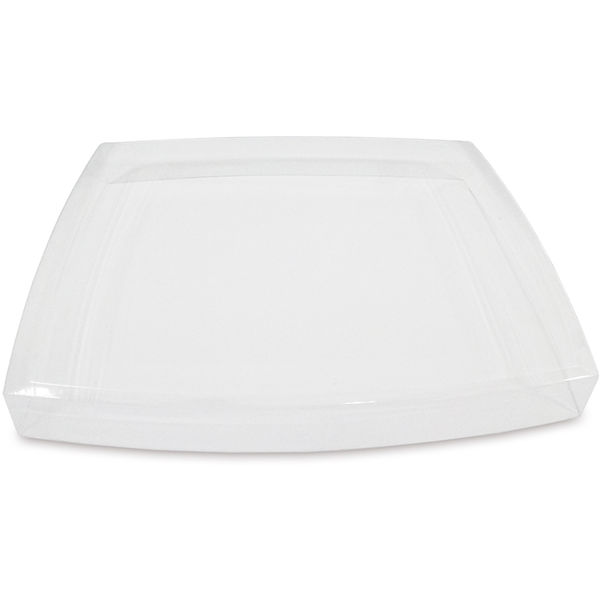

In-Use-Cover, Terminal, EX

Item Number

83034024

Description

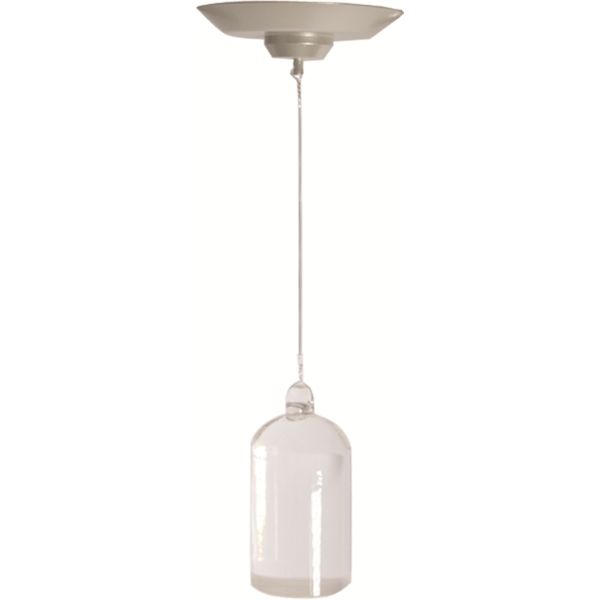

Sinker, Glass, Liquid, Density Kit

Item Number

30130302

Description

Static Ionizer, ION-100A, AM

Item Number

30130303

Description

Static Ionizer, ION-100A, AP

Item Number

30095929

Description

Static Ionizer, ION-100A, EU

Item Number

83020927

Description

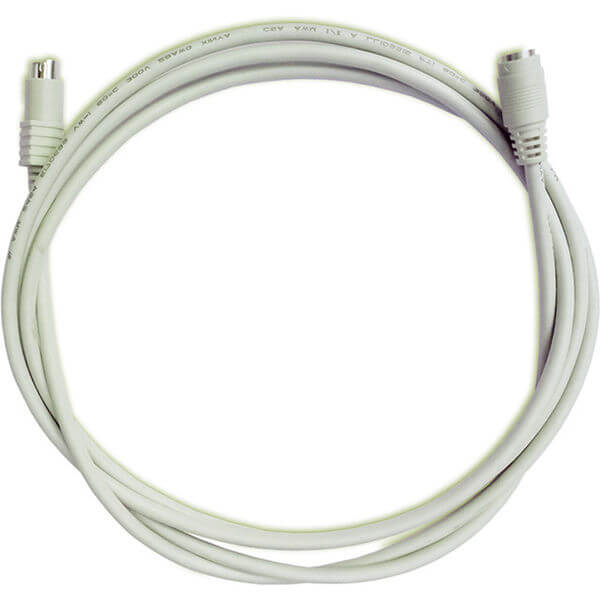

Terminal Extension Cable, EX
