Light Duty Orbital Shakers
Choose the Perfect Light Duty Orbital Shaker You Can Trust for Reliable Everyday Shaking

SHLD0403DG

Motion Orbital, 3 mm
Capacity 3.6 kg
Speed Range 100 rpm – 1200 rpm
Item Number: 30391898
Overview
Dependable OHAUS Light Duty Shakers are designed for applications with loads up to 4 kg. Choose from two orbits and speed ranges to optimize your sample mix. One digital model dedicated for use with microplates, two digital models designed to work with accessories and a non-digital economical unit for everyday shaking. All models feature triple eccentric drive systems for stable shaking with microprocessor-control for reliable shaking action.
Applications
ELISA Assays, Cell Cultures, Immunoassays, Protein Studies, Bacterial and Yeast Cultures, Staining/Destaining, Blotting Techniques, DNA Studies
Display
Easy-to-read, independent LED displays for speed/time allow the operator to view all settings simultaneously (digital models) and basic control knobs with dial markings for speed/time (analog models)
Operation
Detachable 3-wire cord and plug (included)
Communication
N/A
Construction
Cast aluminum
Design Features
Non-slip mat (11.75 x 8.75 inches or 29.9 x 22.2 cm) included with all models except the Microplate Shaker
Specifications
Motion Orbital, 3 mm
Capacity 3.6 kg
Speed Range 100 rpm – 1200 rpm
Tray Size (LxW) 11.75 in x 8.75 in (29.9 cm x 22.2 cm)
Control Digital
Drive System Brushless DC Motor;Triple Eccentric
Dimensions (HxLxW) 4.3 in x 16.3 in x 10.3 in (10.8 cm x 41.3 cm x 26 cm)
Net Weight 24 lb (10.9 kg)
Orbit 0.1 in (3 mm)
Power 120V, 5A, 50/60Hz
Power Consumption 25 W
Safety Certification TUV
Speed Accuracy ±2% of set speed
Speed Range 100 rpm – 1200 rpm
Timer 1 second – 160 hours
Tray Construction Aluminum
Working Environment 14°F – 140°F, 80%RH, non-condensing (-10°C – 60°C, 80%RH, non-condensing)
Accessories

Item Number

30400086

Description

Flask Clamp, 50 mL

Item Number

30400085

Description

Flask Clamp, 25 mL

Item Number

30400084

Description

Flask Clamp, 10 mL

Item Number

30400123

Description

Universal Harness

Item Number

30400122

Description

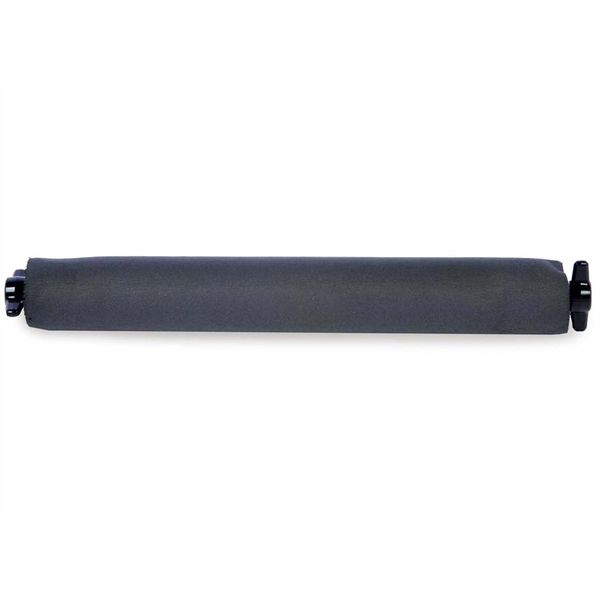

Roller Bar, 22 cm

Item Number

30400125

Description

Dilution Cup Tray

Item Number

30400124

Description

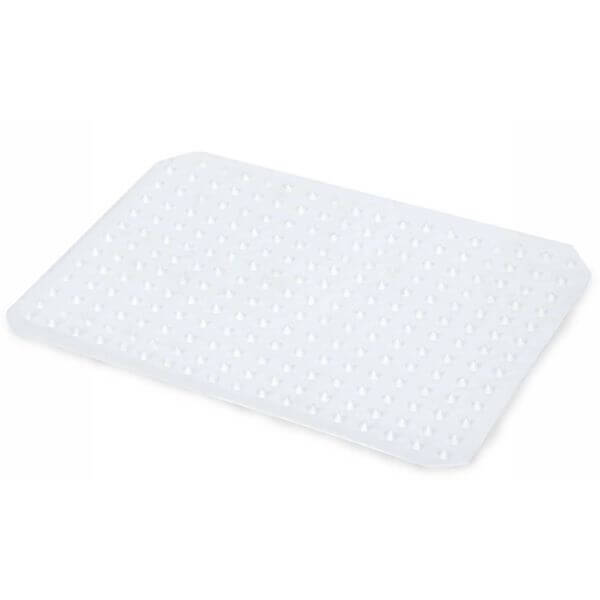

Dimpled Mat, 22 X 30 cm, for SHLD0403DG

Item Number

30400121

Description

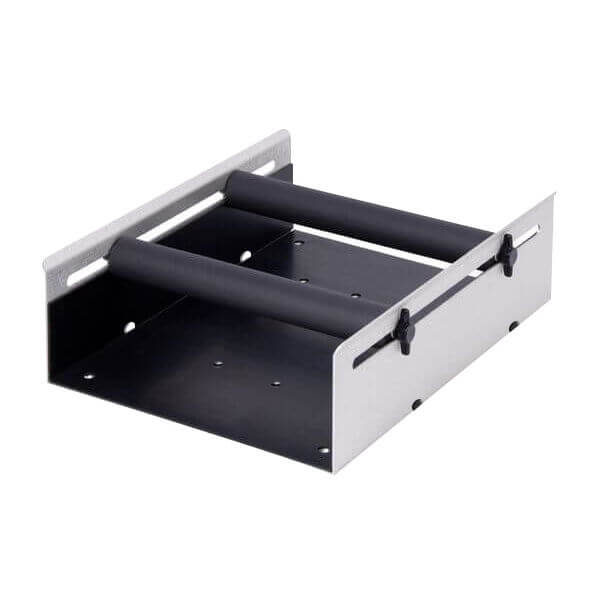

Adjustable Platform 22 X 30 cm, 2 Bars

Item Number

30400119

Description

Test Tube Rack For 15 mL Tubes

Item Number

30400120

Description

Test Tube Rack For 50 mL Tubes

Item Number

30400118

Description

Test Tube Rack 22-25 mm Diameter

Item Number

30400117

Description

Test Tube Rack 18-20 mm Diameter

Item Number

30400116

Description

Test Tube Rack 14-16 mm Diameter

Item Number

30400115

Description

Test Tube Rack 10-13 mm Diameter

Item Number

30400101

Description

Flask Clamp PVC 500mL

Item Number

30400100

Description

Flask Clamp PVC 250mL

Item Number

30400099

Description

Flask Clamp PVC 125mL

Item Number

30400097

Description

500 mL Media Bottle Clamp

Item Number

30400089

Description

Flask Clamp, 500 mL

Item Number

30400088

Description

Flask Clamp, 250 mL

Item Number

30400087

Description

Flask Clamp, 125 mL
