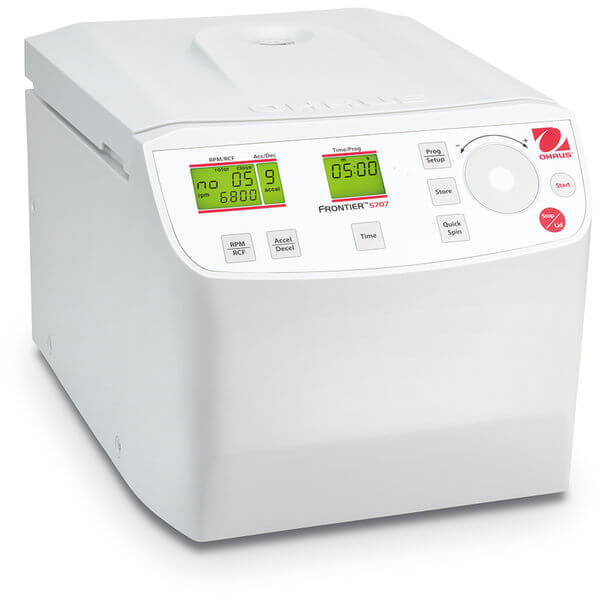

Frontier™ 5000 Series Multi
Reliable and Compact Multi-Function Centrifuges Ideal for General Lab Applications

FC5707+R05 100-230V

Speed Range 200 rpm – 6,800 rpm
Maximum Relative Centrifuge Force (x g) 4,445 g
Maximum Capacity (Rotor) 8 x 15 ml
Item Number: 30393189
Overview
Frontier™ Multi Centrifuges are reliable compact low-speed general purpose centrifuges. The standard rotor options can process both round and conical bottom tubes (including common blood tubes), and can also be adapted easily with accessories to process smaller tubes. Designed with convenient operation in mind, the Multi Centrifuges feature an intuitive interface. The compact profile helps to save valuable bench space in labs.
Applications
Centrifugation
Display
LCD, Backlight, 2 lines
Operation
AC Power (Included)
Communication
N/A
Construction
Brushless quiet motor, small footprint
Design Features
Easy installation design
Specifications
Speed Range 200 rpm – 6,800 rpm
Maximum Relative Centrifuge Force (x g) 4,445 g
Maximum Capacity (Rotor) 8 x 15 ml
Program memories 99
Rotor In Package Angle rotor 8 x 15ml
Acceleration Gear 10
Deceleration Gear 10
Dimensions 9.3 in x 14 in x 10.9 in (236 mm x 356 mm x 277 mm)
Display LCD with backlight
Lid lock Mechanical
Net Weight 22.1 lb (10 kg)
Noise Level ≤60±2 dB(A)
Power AC Power (Included)
Power Consumption 50 W
Pre-cool time Not applicable
Rotor Compatibility Angle 8X15ml
Rotor Recognition Method Manual
Running Time Quickspin;10 sec to 99 h 59 min 59 sec;Continous
Safety Certification CE;FCC
Working Environment 36°F – 95°F, 80%RH, non-condensing (2°C – 35°C, 80%RH, non-condensing)
Accessories

Item Number

30472305

Description

Rotor Angle 8x15ml
