MB23
Redefining Value in Moisture Analysis!

MB23

Maximum Capacity 110 g
Readability Moisture Content 10 mg/0.1%
Pan Size 3.5 in (90 mm)
Item Number: 83999801
Overview
The MB23 provides precise moisture content determination at an unbeatable value. With a large backlit LCD display, standard RS232 port, 110g capacity with a readability of 0.01g/0.1% and an non-glass infrared heating element, the MB23 offers moisture analysis for any budget.
Applications
Percent Moisture Determination, Percent Solid Determination, Weighing
Display
Backlit liquid crystal display (LCD)
Operation
Power cord (included)
Communication
RS232 (included)
Construction
Infrared heat source, ABS housing, metal pan support, metal pan handler, in-use cover
Design Features
3 shut off criteria (manual, timed or auto), 1 standard heating profile, 50° to 160° C heating range (5° C increments)
Specifications
Maximum Capacity 110 g
Readability Moisture Content 10 mg/0.1%
Pan Size 3.5 in (90 mm)
Heater Type Infrared Coil
Communication RS232 (Included)
Dimensions (HxLxW) 5 in x 11 in x 6.5 in (127 mm x 280 mm x 165 mm)
Display LCD, backlight
In-use cover Included
Net Weight 5 lb (2.3 kg)
Power AC Power (Included)
Shut-Off Criteria Automatic - Preset Weight Loss/Time;Timed;Manual
Temperature Range 50 °C – 160 °C
Units of Measurement Gram
Working Environment 50°F – 104°F, 80%RH, non-condensing (10°C – 40°C, 80%RH, non-condensing)
Accessories

Item Number

11113857

Description

Temp. Calibration Kit, MB Series

Item Number

11113873

Description

Holder, Pan, MB35 MB45

Item Number

80500571

Description

Cable, SF42-AV DV MB Ranger

Item Number

80500525

Description

Cable, RS232, IBM 9P, AV DV MB Ranger

Item Number

80252581

Description

Cable, ST103-AV DV EX MB PA TxxP

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

80251992

Description

Printer, Thermal, STP-103, US

Item Number

80252478

Description

Pan, Reusable, Set(3), 7mm, MB Series

Item Number

80252479

Description

Pan, Reusable, Set(3), 14mm, MB Series

Item Number

80850043

Description

Anti-Theft Device, MB AX EX Scout-HD

Item Number

80850080

Description

Software, Winwedge

Item Number

80850086

Description

Pan, Aluminum, Set(80), MB Series

Item Number

80850087

Description

Filter, Glass Fiber, Set(200)

Item Number

80252475

Description

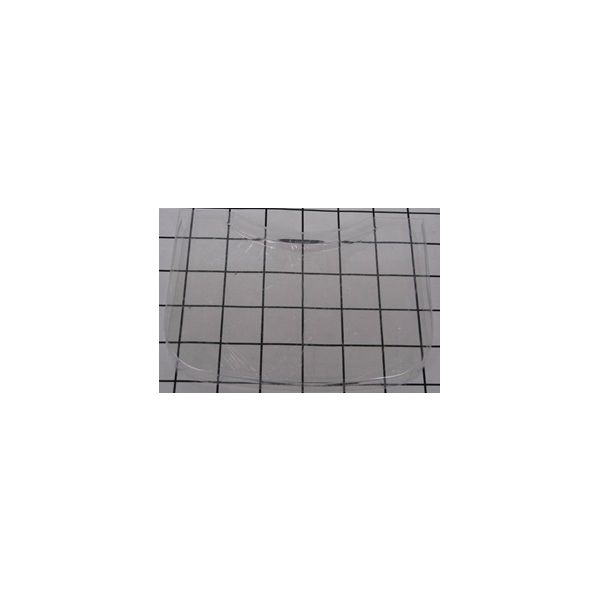

In-Use-Cover, MB23 MB25

Item Number

80252476

Description

Holder, Pan, MB Series

Item Number

80252477

Description

Cage, Sample, MB Series
