This product is discontinued without a direct replacement. Please Contact your local OHAUS office for recommendations.
Enlarge

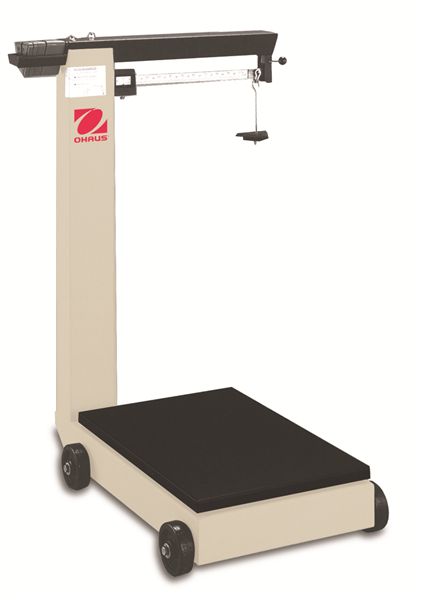

D500M
Economical Mechanical Bench Scale for Basic Industrial Applications

D500M

Maximum Capacity 1,000 lb (500 kg)
Readability 0.2 lb (200 g)
Readability (Certified) 0.5 lb (200 g)
Item Number: 80252735
Overview
This portable mechanical industrial scale is designed to meet a variety of applications in which a simple and cost-effective scale is a must. D500M features an easy-to-read, dual-side flat beam with a shadow-proof poise that is visible in most lighting conditions and is NTEP certified.
Applications
Weighing
Display
Easy-to-read, dual-side flat beam with a shadow-proof poise
Operation
N/A
Communication
N/A
Construction
Epoxy painted steel, phenolic wheels
Design Features
NTEP Certified
Specifications
Maximum Capacity 1,000 lb (500 kg)
Readability 0.2 lb (200 g)
Readability (Certified) 0.5 lb (200 g)
Platform Size (LxW) 28.13 in x 19.25 in (714 mm x 489 mm)
Dimensions 48.25 in x 39 in x 26 in (1,238 mm x 990 mm x 660 mm) (HxLxW)
Net Weight 114 lb (51.7 kg)
Power No Power Required
Units of Measurement Pound
