T72XW
Advanced Performance Stainless Steel Indicator with External Device Control Capabilities

T72XW

Resolution 50,000
Resolution (Certified) 10,000
Battery Life Not Applicable
Item Number: 30126959
Overview
The OHAUS T72XW indicator provides the flexibility, performance and operation necessary for specific applications with connectivity and data output capabilities - including vehicle weighing, over/under checkweighing, animal weighing and counting. The 7000 series indicator has multiple functions, intuitive software, multiple connectivity options, and the durability to stand up to the wear-and-tear in industrial settings.
Applications
Weighing, Parts Counting, Checkweighing, Animal/Dynamic Weighing, Vehicle Weighing
Display
Transflective graphic LCD with white backlight, 240 x 96 pixels
Operation
AC power (included)
Communication
Easy access communication port including RS232 (included), USB, Ethernet and second RS232 or RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction
IP66/NEMA 4X stainless steel housing and mounting bracket
Design Features
Checkweighing lights with selectable operation and audible signal settings, sealed front panel, 5 operating languages (English, Spanish, French, German and Italian), selectable environmental and auto-print settings, stability and overload/underload indicators
Specifications
Resolution 50,000
Resolution (Certified) 10,000
Battery Life Not Applicable
Outputs 3 In/4 Out digital I/O
Second Scale Input Not Applicable
Protection Rating IP66
Communication RS232 (Included);2nd RS232 (Available as an Accessory);USB (Available as an Accessory);Ethernet (Available as an Accessory)
Dimensions (HxLxW) 9.1 in x 3.4 in x 11.1 in (232 mm x 86 mm x 283 mm)
Display graphic LCD
Legal for Trade EC Type Approved;Measurement Canada Approved;NTEP Certified
Net Weight 6.6 lb (3 kg)
Power AC Power (Included)
Protection Rating IP66
Tare Range To capacity by subtraction
Units of Measurement Kilogram;Pound;Ounce;Pound:Ounce;Gram;Metric Tonnes
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

80500552

Description

Cable, RS232, CKW TxxXW

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

80251992

Description

Printer, Thermal, STP-103, US

Item Number

30132163

Description

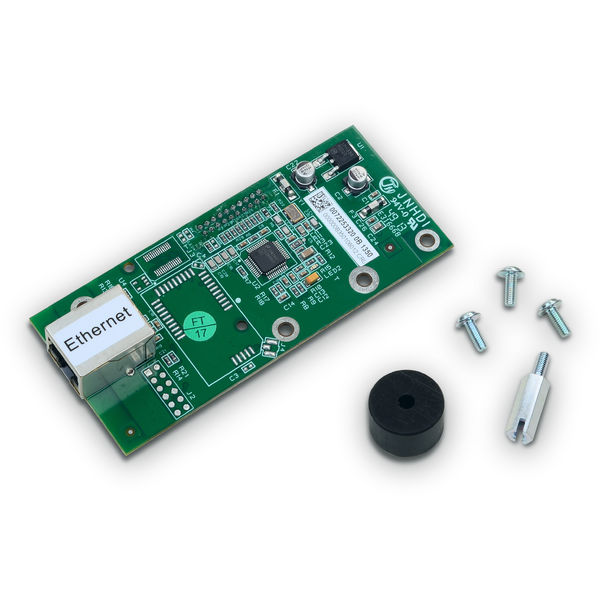

Ethernet Kit, T72XW

Item Number

72209340

Description

Column Adapter, SST, T32XW T51XW T71XW

Item Number

30132164

Description

USB with I/O Kit, T72XW
