T31P
Economical ABS Plastic Indicator for Basic Industrial Applications

T31P

Resolution 20,000
Resolution (Certified) 6,000
Battery Life 100 Hours with Rechargeable Battery
Item Number: 83998110
Overview

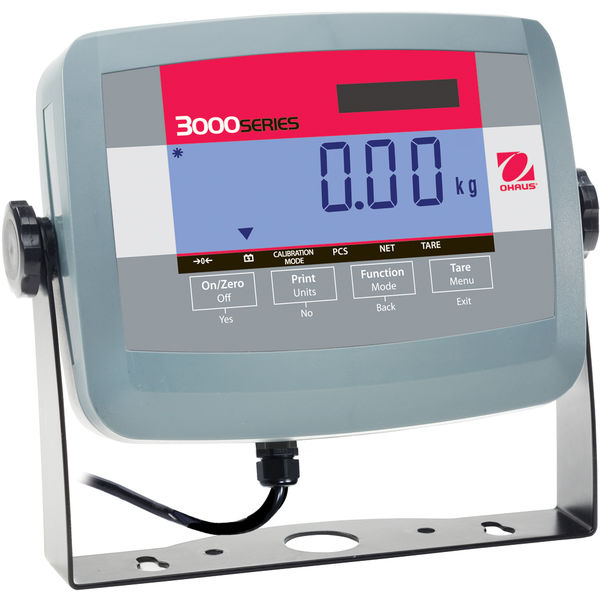

Designed with affordability in mind for basic industrial applications, the T31P combines high-impact ABS housing with a large high contrast backlit LCD display, bi-directional RS232 and 100-hour internal rechargeable battery. The T31P also features software for weighing and simple parts counting.
Applications
Weighing, Parts Counting
Display
Backlit liquid crystal display (LCD)
Operation
AC adapter (included) or rechargeable battery (included)
Communication
Easy access communication port including RS232 interface (included)
Construction
ABS housing and painted steel mounting bracket, non-slip rubber feet
Design Features
User-configurable resolution up to 20,000d/6,000e, OIML Approved, NTEP Certified and Measurement Canada Approved
Specifications
Resolution 20,000
Resolution (Certified) 6,000
Battery Life 100 Hours with Rechargeable Battery
Outputs Not Applicable
Second Scale Input Not Applicable
Protection Rating Not Applicable
Communication RS232 (Included)
Dimensions (HxLxW) 6.5 in x 2.8 in x 8.2 in (168 mm x 71 mm x 210 mm)
Display LCD with backlight
In-use cover Available as an Accessory
Legal for Trade EC Type Approvable;Measurement Canada Approved;NTEP Certified
Net Weight 3.6 lb (1.6 kg)
Power AC Adapter (Included);Rechargeable Battery (Included)
Protection Rating Not Applicable
Stabilization Time 2 s
Tare Range To capacity by subtraction
Units of Measurement Gram;Kilogram;Ounce;Pound;Pound:Ounce
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Accessories

Item Number

80500525

Description

Cable, RS232, IBM 9P, AV DV MB Ranger

Item Number

30304102

Description

Interface Kit, RS232-Ethernet

Item Number

30304101

Description

Interface Kit, RS232-USB

Item Number

80251747

Description

Wall Mount Kit, Painted, T31P

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

80251992

Description

Printer, Thermal, STP-103, US

Item Number

72209339

Description

Column Adapter, Painted, T31P T51P T71P

Item Number

30101017

Description

In-Use-Cover, T24P T31P

Item Number

80850080

Description

Software, Winwedge
