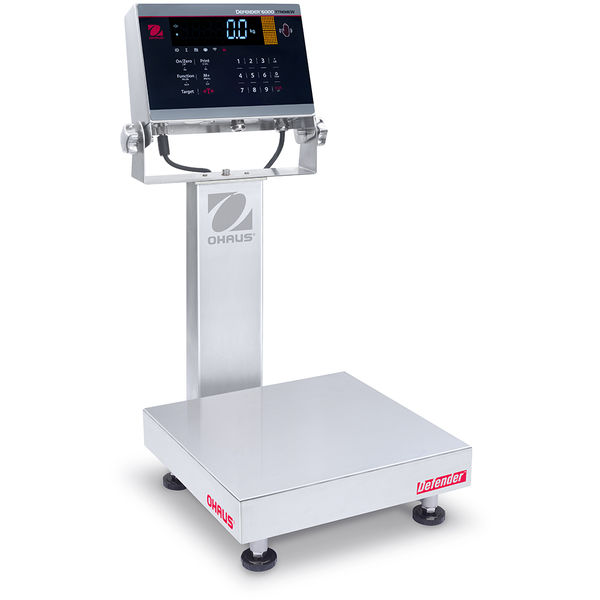

Defender™ 6000 Hybrid - i-D61XW
Washdown Bench Scale for Standard Industrial Applications

D61XWE25WQR6

Maximum Capacity 50 lb (25 kg)
Readability 0.002 lb (1 g)
Readability (Certified) 0.01 lb (5 g)
Item Number: 30631720
Overview
The Defender 6000 series Hybrid Washdown bench scale is ideal for a multitude of applications, including production and packaging. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options: The Defender 6000 hybrid is designed to simplify demanding industrial and commercial applications.
Applications
Weighing, Counting with APW Optimization, Percent Weighing, Checkweighing, Checkcounting, Filling, Dynamic Weighing/Display Hold
Display
6-digit, 7-segment white LED, 20 mm high digits
Operation
100-240 VAC / 50/60 Hz universal power supply, hardwired
Communication
Easy access communication ports including RS232 and USB host (included), second RS232/RS485/USB device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
304 stainless steel platform and frame, IP68/IP69K 316 stainless steel housing indicator and mounting bracket, knife-resistant front panel, IP67 load cell
Design Features
150% overload capacity protection, bar matrix check light, customizable print templates, menu and key lock, selectable environmental and auto-print settings, stability indicator, overload/underload indicators, auto shut-off, auto tare, adjustable non-slip rubber feet
Specifications
Maximum Capacity 50 lb (25 kg)
Readability 0.002 lb (1 g)
Readability (Certified) 0.01 lb (5 g)
Platform Size 12 in x 12 in (305 mm x 305 mm)
Legal for Trade NTEP Certified;Measurement Canada Approved
Power Rechargeable Battery (Not Included);AC Power (Included)
Battery Life Not Applicable
Communication Ethernet (Available as an Accessory);2nd RS232/RS485/USB (available as an accessory);RS232;USB Host;WiFi/Bluetooth (available as an accessory)
Dimensions 17.4 in x 24.3 in x 12 in (442 mm x 617 mm x 305 mm) (LxHxW)
Display 7-Segment white LED, height 20mm + 3 color checkweigh dot matrix LED
Net Weight 26.5 lb (12 kg)
Outputs 4-20 mA;0–10V;2 In/4 Out digital I/O
Platform Construction Stainless Steel
Protection Rating IP69k;IP68
Second Scale Input Not Applicable
Tare Range To capacity by subtraction
Units of Measurement Gram;Kilogram;Pound;Ounce;Pound: Ounce
Working Environment 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
Accessories

Item Number

30424404

Description

2nd RS232/RS485/USB Kit TD52 DT61XW

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

30424021

Description

Alarm Beacon Kit 3 Colors 243mm OHAUS

Item Number

80251992

Description

Printer, Thermal, STP-103, US

Item Number

30424403

Description

Analog Output Kit, TD52 DT61XW

Item Number

30472064

Description

Auxiliary display AD7-RS

Item Number

30424409

Description

Cable Extension 9m D52

Item Number

80500552

Description

Cable, RS232, CKW TxxXW

Item Number

30593703

Description

Datalogic Barcode Scanner QD2131

Item Number

30097591

Description

Discrete I/O Kit, R71 TD52 DT61XW

Item Number

30429666

Description

Ethernet kit TD52 DT61XW

Item Number

80500503

Description

PCBA Kit, Alibi Memory, R71 T71

Item Number

30611855

Description

Printer Zebra Label GK420T

Item Number

30616409

Description

Wheel Kit SST Defender Series

Item Number

30412537

Description

Wireless Dongle MTICWD-200
