This item has been discontinued. May we suggest something new:

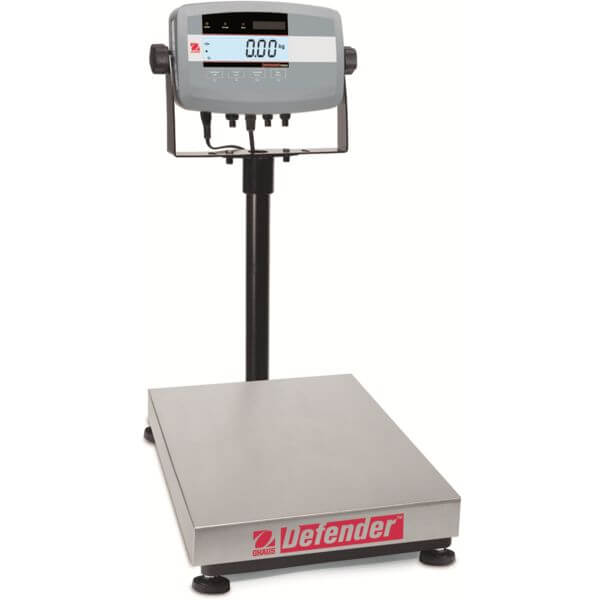

Defender™ 5000
Multifunctional Bench Scales for Standard Industrial Applications

D51P15HR1

Maximum Capacity 30 lb (15 kg)
Readability 0.002 lb (1 g)
Readability (Certified) 0.01 lb (5 g)
Item Number: 80500511
Overview
The OHAUS Defender 5000 Series is a feature-rich line of bench scales that is ideal for production, packaging and general commercial and industrial weighing applications. With its rugged construction, comprehensive yet intuitive software and multiple connectivity options, the Defender 5000 can meet the needs of standard industrial applications.
Applications
Weighing, Parts Counting, Percent Weighing, Checkweighing, Dynamic/Animal Weighing, Display Hold
Display
Backlit liquid crystal display (LCD), 3 color checkweighing LEDs
Operation
Power cord (included) or 6 C (LR14) batteries (not included) or rechargeable battery (accessory sold separately)
Communication
Easy access communication port including RS232 (included) and 2nd RS232 or RS422/RS485 (accessories sold separately). GLP/GMP data output with real-time clock.
Construction
ABS plastic indicator with reversible rear cover and painted steel column and wall bracket, 304 grade stainless steel platform with black polyurethane painted steel form-and-weld frame, IP67 aluminum load cell, non-slip adjustable rubber feet
Design Features
User-configurable resolution up to 15,000d/3,000e, 150% overload capacity protection, OIML Approved, NTEP Certified and Measurement Canada Approved
Specifications
Maximum Capacity 30 lb (15 kg)
Readability 0.002 lb (1 g)
Readability (Certified) 0.01 lb (5 g)
Platform Size 14 in x 12 in (355 mm x 305 mm)
Legal for Trade NTEP Certified;Measurement Canada Approved;OIML
Power 6 C (LR14) Batteries (Not Included);Rechargeable Battery (Not Included);AC Power (Included)
Dimensions 18.7 in x 23.6 in x 12 in (475 mm x 600 mm x 305 mm) (LxHxW)
Tare Range To capacity by subtraction
Working Environment 14°F – 104°F, 85%RH, non-condensing (-10°C – 40°C, 85%RH, non-condensing)
Platform Construction Stainless Steel
Net Weight 25.3 lb (11.5 kg)
Second Scale Input Not Applicable
Protection Rating Not Applicable
In-Use Cover No
Communication 2nd RS232 (Available as an Accessory);RS232 (Included);RS422/485 (Available as an Accessory)
Units of Measurement Metric Tons;Gram;Kilogram;Pound;Custom;Ounce;Pound: Ounce
Display LCD with white backlight + 3 checkweigh LED
Battery Life 35 Hours with Rechargeable Battery;80 Hours with Disposable Batteries
Outputs DC Relays (Available as an Accessory);AC Relays (Available as an Accessory)
Gross Weight (Shipping) 15 kg
Accessories

Item Number

80500525

Description

Cable RS232 IBM 9P Male-to-Female

Item Number

80500571

Description

Cable, SF42-AV DV MB Ranger

Item Number

80500720

Description

Relay Kit, AC, T51 T71

Item Number

80500727

Description

Relay Kit, DC, T51 T71

Item Number

80850080

Description

Software, Winwedge

Item Number

30372146

Description

Wheel Kit, Defender Series
