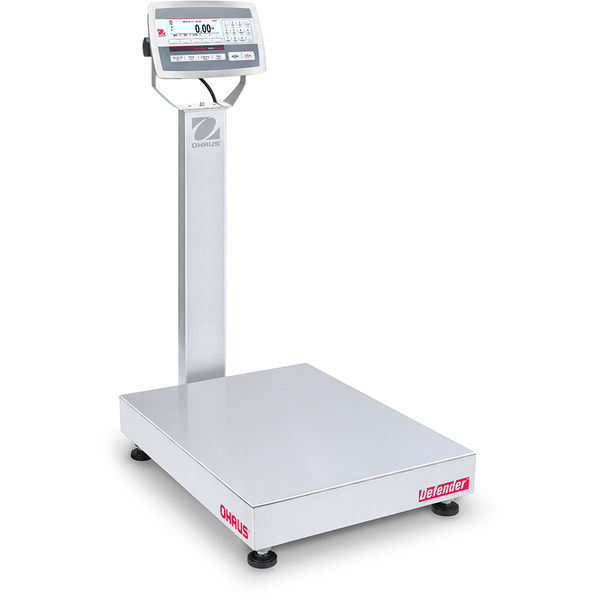

Defender® 5000 Washdown - D52
Multifunctional Stainless Steel Washdown Bench Scale for Standard Industrial Applications

D52XW125WTX7

Maximum Capacity 250 lb (125 kg)
Readability 0.01 lb (5 g)
Readability (Certified) 0.05 lb (50 g)
Item Number: 30461683
Overview
The OHAUS next generation Defender 5000 Series multifunctional washdown bench scale is ideal for a multitude of applications, including production, packaging, inventory and shipping. Built durably and equipped with advanced features such as maximum configurability print output, GMP/GLP data output, library/user management and multiple connectivity options - the Defender 5000 is designed to simplify demanding industrial and commercial applications.
Applications
Weighing, Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing (Display Hold)
Display
Backlit Liquid Crystal Display (LCD), 256 x 80 pixels
Operation
Internal power supply with power cord (included) or rechargeable battery (sold separately as an accessory)
Communication
Easy access communication ports including RS232 and Micro SD slot (included), second RS232/RS485/USD device, Ethernet and WiFi/Bluetooth, Discrete I/O and Analog Output (sold separately as accessories); GLP/GMP data output with real-time clock
Construction
304-grade stainless steel platform and frame, stainless steel IP68 indicator, IP67 load cell, non-slip adjustable rubber feet
Design Features
Resolution up to dual range 3,000e, 150% overload capacity, checkweighing display and beep, menu lock switch, selectable display languages, selectable filter, stability indicator, overload/underload indicators, selectable display controls, auto print and tare
Specifications
Maximum Capacity 250 lb (125 kg)
Readability 0.01 lb (5 g)
Readability (Certified) 0.05 lb (50 g)
Platform Size 24 in x 18 in (610 mm x 457 mm)
Legal for Trade Measurement Canada Approved;NTEP Certified
Power AC Power (Included);Rechargeable Battery (Not Included)
Battery Life 20 Hours with Rechargeable Battery
Communication RS232 (Included);2nd RS232/RS485/USB (Available as an Accessory);USB Host (Available as an Accessory);WiFi/Bluetooth (Available as an Accessory);Ethernet (Available as an Accessory)
Dimensions 36.8 in x 30.5 in x 18 in (934 mm x 775 mm x 457 mm)
Display Dot matrix LCD with white LED backlight
Net Weight 68.4 lb (31 kg)
Outputs 3 In/4 Out digital I/O;4 - 20mA
Platform Construction Stainless Steel
Protection Rating IP67
Second Scale Input Not Applicable
Tare Range To capacity by subtraction
Units of Measurement Custom;Gram;Kilogram;Metric Tonnes;Ounce;Pound;Pound:Ounce;Tonne
Working Environment 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
Accessories

Item Number

80500552

Description

Cable, RS232, CKW TxxXW

Item Number

30064203

Description

Printer, Impact, SF40A, AM

Item Number

80251992

Description

Printer, Thermal, STP-103, US

Item Number

30372146

Description

Wheel Kit, Defender Series

Item Number

30097591

Description

Discrete I/O Kit, 2-In/4-Out, R71 TD52

Item Number

30424403

Description

Analog Output Kit, TD52

Item Number

30424404

Description

2nd RS232/RS485/USB Kit, TD52

Item Number

30424405

Description

Rechargeable battery Li-ion TD52

Item Number

30424406

Description

USB Host Interface for Dongle TD52

Item Number

30429666

Description

Ethernet kit TD52

Item Number

30412537

Description

Wireless Dongle MTICWD-200

Item Number

30424025

Description

Holder Kit Printer SST

Item Number

30424409

Description

Cable Extension 9m D52

Item Number

30469949

Description

In-Use-Cover, Set(10), TD52XW

Item Number

Description

Auxiliary display AD7-RS

Item Number

30424021

Description

Alarm Beacon Kit 3 Colors 243mm OHAUS

Item Number

30424023

Description

In-Use-Cover, TD52XW

Item Number

30424026

Description

Wall Mount Kit, SST, TD52XW
