Defender™ 6000 Washdown Base
Advanced IP68/IP69K Washdown Base

D5K1S

Maximum Capacity 10 lb (5 kg)
Readability 0.001 lb (0.5 g)
Platform Size 9.8 in x 9.8 in (250 mm x 250 mm)
Item Number: 30575603
Overview
The Defender 6000 Series Extreme Washdown Base is specifically designed for food, chemical and pharmaceutical applications, including production and packaging. Defender 6000 handles the most demanding applications with 316 stainless steel platform and frame, and hermetically-sealed stainless steel IP69K load cell. Defender 6000 meets metrological approvals, NSF listing, and supporting HACCP systems.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction
316 stainless steel platform and frame, hermetically-sealed stainless steel load cell, non-slip adjustable rubber feet, level indicator
Design Features
150% overload capacity protection, open design to minimize build-up and support easy cleaning
Specifications
Maximum Capacity 10 lb (5 kg)
Readability 0.001 lb (0.5 g)
Platform Size 9.8 in x 9.8 in (250 mm x 250 mm)
Protection Rating IP69k;IP68
Dimensions 9.8 in x 4.2 in x 9.8 in (250 mm x 106 mm x 250 mm) (LxHxW)
Net Weight 12.8 lb (5.8 kg)
Platform Construction Stainless Steel
Working Environment 14°F – 104°F, 80%RH, non-condensing (-10°C – 40°C, 80%RH, non-condensing)
Accessories

Item Number

30429931

Description

Cable Assembly 25cm to indicator D52

Item Number

30424409

Description

Cable Extension 9m D52

Item Number

30572908

Description

Column Kit 260mm 316 D61

Item Number

30626654

Description

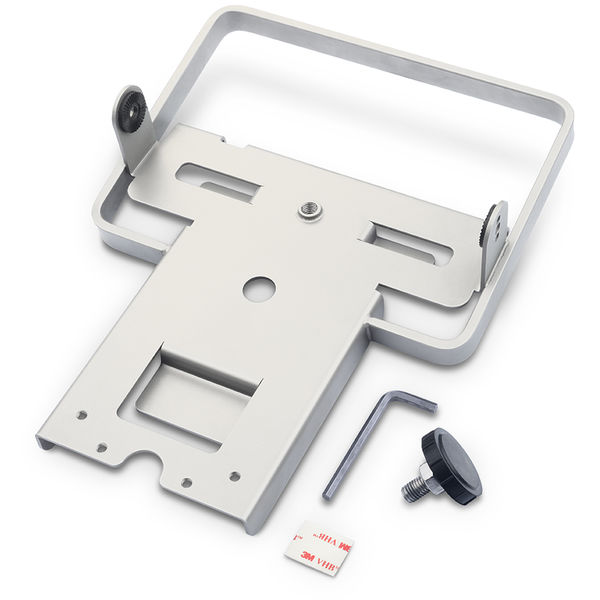

Mounting Set Front SST DT61

Item Number

30616409

Description

Wheel Kit SST Defender Series
