Specialty Stirrers

Large Volume Stirrers

Powerful Motor and Magnet Mixes Samples Up To 200 L
OHAUS offers four models for stirring capacities between 25 to 200 L allowing you to choose the right model for your application. The broad top plate surface allows processing of oversized vessels such as carboys for your large volume stirring. The powerful magnetic drive is also capable of mixing highly viscous materials.
Large Volume Stirrers Features

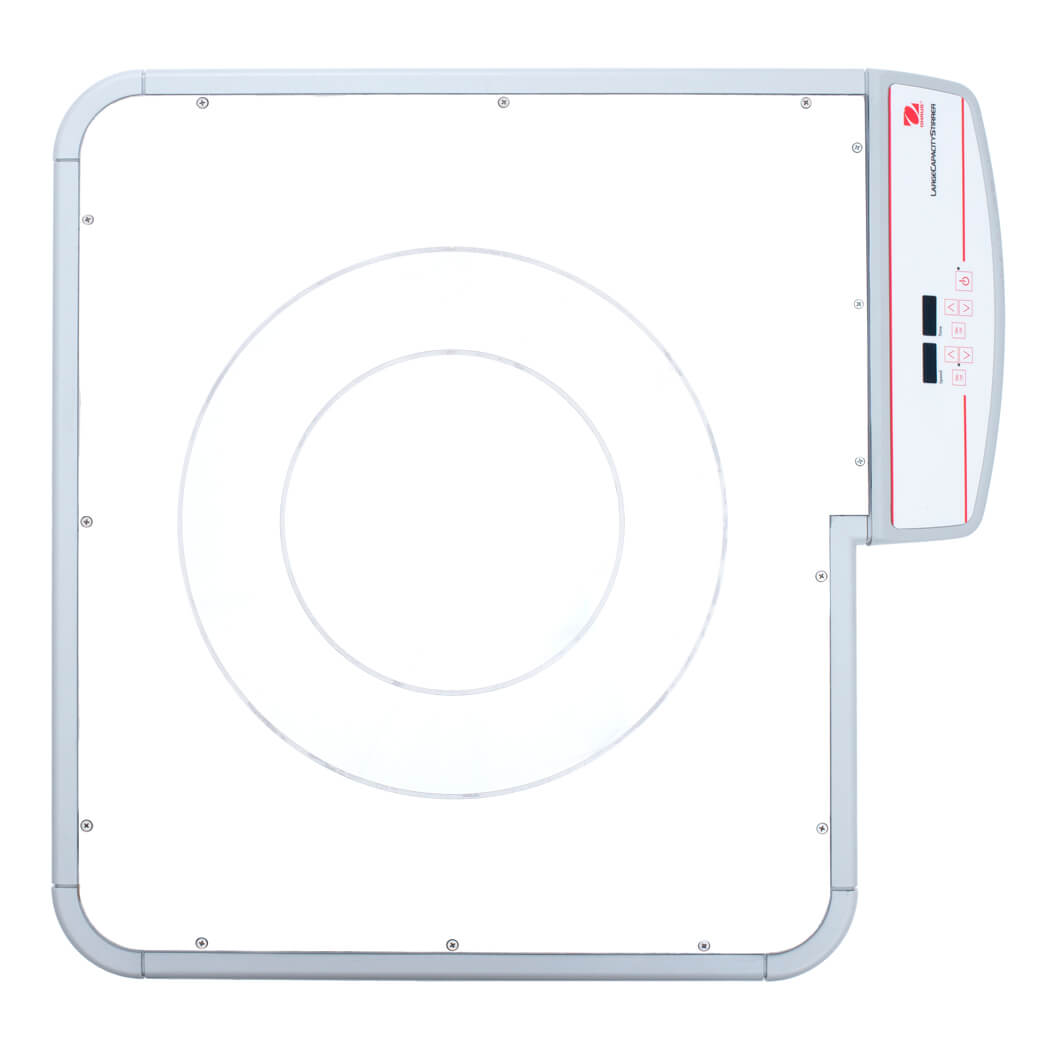

Large Capacity Stirrers with a 100 or 200 L capacity are made with a stainless steel base offering durability and stability, and feature a 54 x 53 cm stainless steel top plate.
Large 32 x 28 cm top plate is chemical-resistant with a white reflective surface that is easy to clean. Digital and non-digital models allow you to choose the right model for your application.
Speed ramping feature slowly increases the motor speed for improved safety and enhanced coupling. Avoids splashing, improves spin bar control and provides excellent low-end speed control.
Large Volume Stirrers Models
Power Consumption
Show More
Dimensions
Show More
Net Weight
Show More
Plate Construction
Show More
Control
Show More
Plate Size
Show More
Power Consumption
75 W
Dimensions
17 in x 4 in x 11 in (432 mm x 97 mm x 279 mm) (LxHxW)
Net Weight
13.6 lb (6.2 kg)
Power Consumption
75 W
Dimensions
17 in x 4 in x 11 in (432 mm x 97 mm x 279 mm) (LxHxW)
Net Weight
13.6 lb (6.2 kg)
Power Consumption
41 W
Dimensions
28.5 in x 5.25 in x 26.75 in (724 mm x 133 mm x 680 mm) (LxHxW)
Net Weight
67 lb (30.4 kg)
Power Consumption
82 W
Dimensions
28.5 in x 5.25 in x 26.75 in (724 mm x 133 mm x 680 mm) (LxHxW)
Net Weight
67 lb (30.4 kg)
Large Volume Stirrers Product Details
Applications
Carboys, Chromatography, Mixing viscous materials, polymers, pilot scale and other large volume Stirring and Mixing
Display
Independent LED displays for speed, and time (on digital models); Knob with 1-10 dial markings (on non-digital models)
Operation
N/A
Communication
N/A
Construction
High Volume Stirrers feature a cast aluminum housing and glass filled nylon top plate. Large Capacity Stirrers feature both stainless steel housing and top plate. Models include either a 70 mm egg shaped stir bar or 102 mm stir bar with pivot ring.
Design Features
Speed ramping feature slowly increases motor speed for enhanced coupling & improved stirring. Microprocessor-controlled for precise speed regulation. Timer counts up or when programmed to a set time, will turn off stirring & sound alarm when timer reaches 0.
